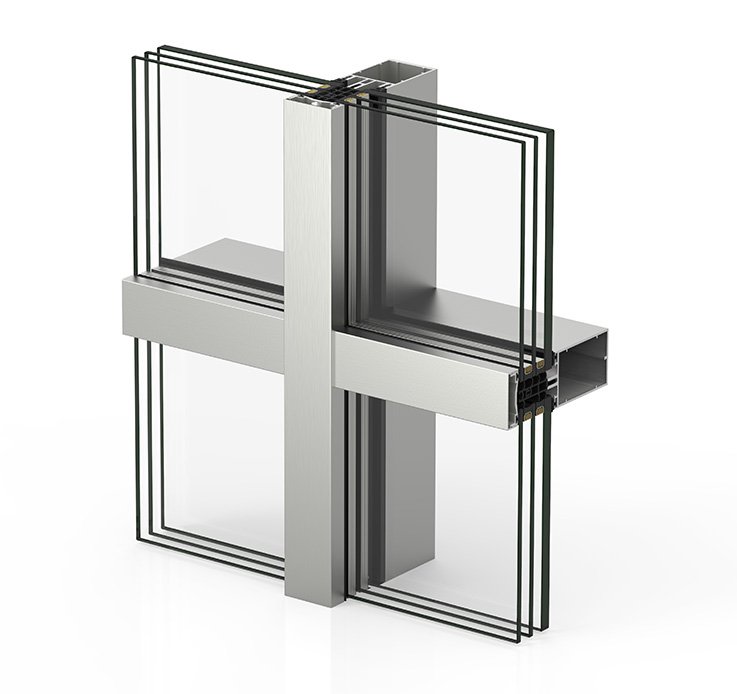

Cortizo TP 52 Facade System

Cortizo TP 52 Facade System

Cortizo TP-52 is an aluminum system for modern glass facades. It supports large-format glazing and multiple design choices, while offering strong insulation, airtightness, and structural options.

Minimalist Design

The 52 mm visible profile line creates a light, modern aesthetic.

Design Choices

Built for vertical, corner, and sloped facades.

Weatherproof Design

Meets top European standards for air, water, and wind resistance.

Energy Efficient

A facade thermal transmittance of Ucw ≥ 0,6 W/m²K ensures energy efficiency.

Technical Specifications

Visible profile width 52 mm
Max. element dimensions up to 2500 × 2500 mm
Max. element weight 180 kg (operable), 750 kg (fixed)
Thermal insulation ≥ 0,6 W/m²K
Glass thickness 4–64 mm
Airtightness class AE
Watertightness RE1350–RE1500
Sound insulation depends on the glass selection
Impact resistance built for high wind and mechanical loads
