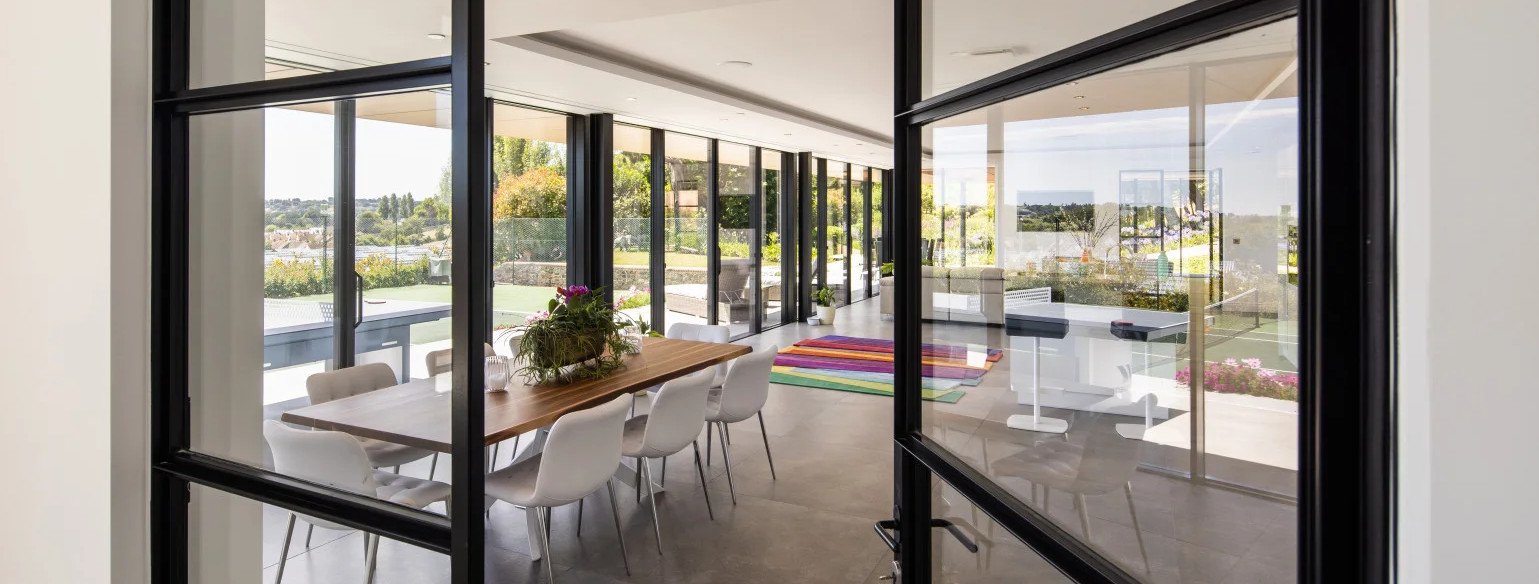

Smart View Line

Smart View Line

Discover our curated collection of cutting-edge aluminum systems, featuring ultra-slim profiles and striking aesthetics. These are the most sought-after solutions in our premium product range.

Minimalist design, maximum natural light, and peak technical performance – tailored for your exceptional architecture.

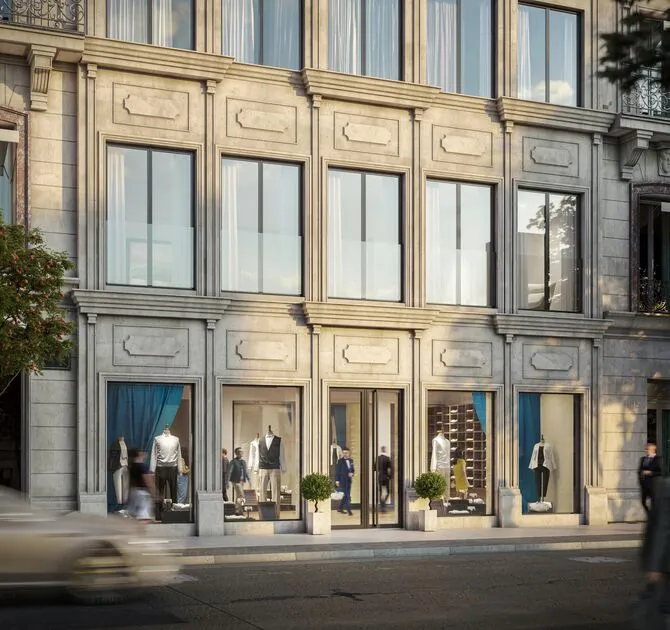

Inward-opening windows

Inward-opening windows

Reynaers Slim Line 38 Functional (Triple Glazed)

This slim-profile aluminum window system features a modern 'steel look' aesthetic, designed for both contemporary builds and renovation projects. It ensures expansive glazed areas, excellent thermal insulation, and superior airtightness.

Technical Specifications:

  • Thermal Insulation: Uw up to 0.99 W/m²K
  • Frame Insulation: Uf 1.9 W/m²K
  • Airtightness: Class 4
  • Water Tightness: Class 9A
  • Wind Load Resistance: Class C4
  • Acoustic Performance: up to 45 dB
  • Security Class: RC2
  • Max. Vent Height: up to 2800 mm
  • Glass Thickness: 16–65 mm
  • Profile Depth: 99 mm



*Technical values may vary depending on the chosen configuration and glazing unit.

*To find out how this system can be adapted to your project, contact us for a free consultation.

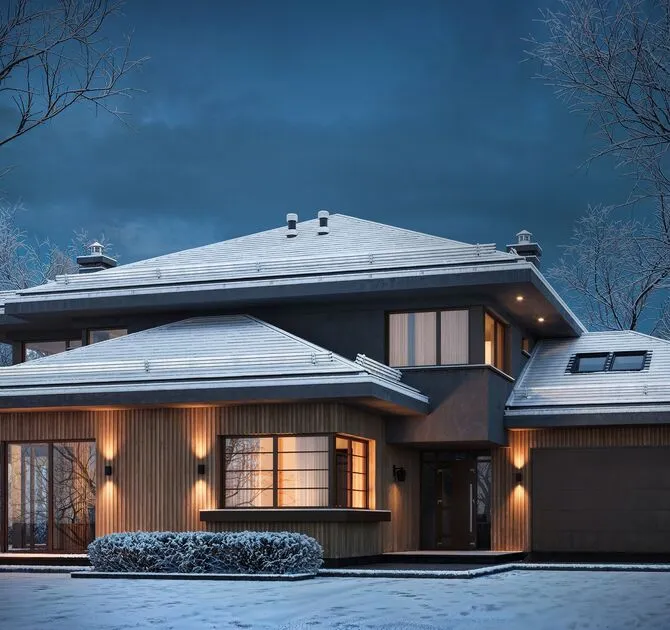

Outward-opening windows

Reynaers Slim Line 38

An elegant slim-profile aluminum window system, designed to replicate the timeless 'steel look' aesthetic while delivering modern design and high energy efficiency. Ideal for both new builds and renovation projects where maximum natural light and minimalist lines are paramount.

Technical Specifications:

  • Thermal Insulation: Uw up to 0.96 W/m²K
  • Frame Insulation: Uf 1.9 W/m²K
  • Airtightness: Class 4
  • Water Tightness: Class 9A
  • Wind Load Resistance: Class C4
  • Acoustic Performance: up to 45 dB
  • Security Class: RC2
  • Max. Vent Height: up to 2800 mm
  • Min. Visible Profile Width: from 67 mm
  • Profile Depth: 99 mm



*Technical specifications may vary depending on the chosen configuration and glazing unit.

*To discover how this system can be tailored to your specific project, contact us for a free consultation.

Outward-opening windows

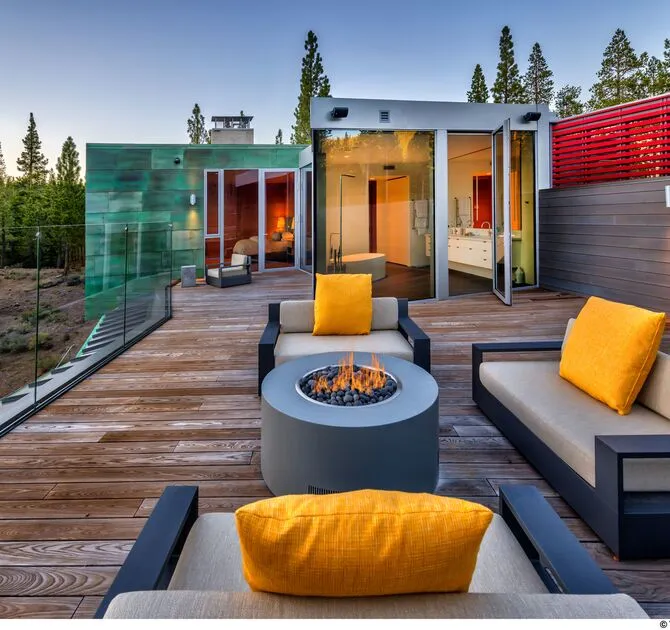

Patio and Entrance doors

Patio and Entrance doors

Reynaers Slim Line 38

This slim-profile aluminum door system features an elegant 'steel look' aesthetic, combining minimalist design with effortless functionality and high thermal efficiency. It is ideal for both contemporary new builds and renovation projects where architectural aesthetics and expansive glazed areas are a priority.

Technical Specifications:

  • Frame Insulation: Uf down to 1.8 W/m²K
  • Acoustic Performance: up to 45 dB
  • Max. Vent Height: up to 3000 mm
  • Min. Visible Profile Width: from 72.5 mm
  • Triple Glazing Available
  • Low / Zero Threshold Options
  • Concealed Hinges and Anti-Panic Solutions
  • Suitable for New Builds and Renovations



*Technical specifications may vary depending on the chosen configuration, hardware, and infill options.

*To discover how this system can be tailored to your project, contact us for a free consultation.

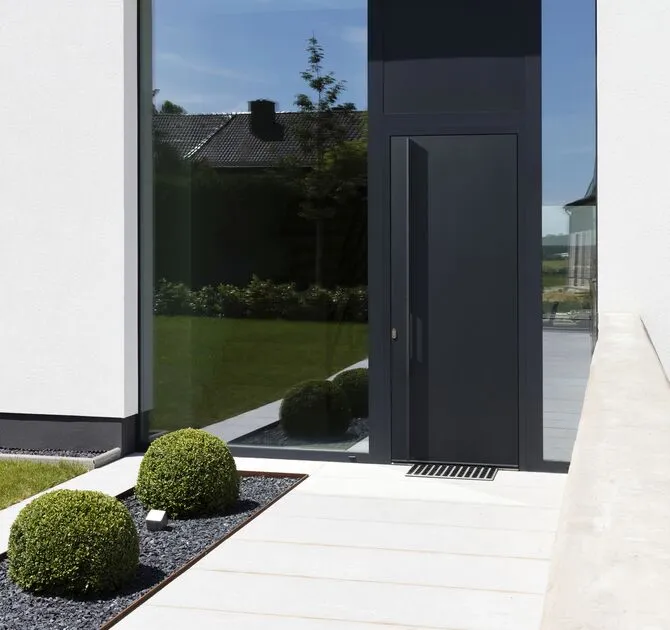

Panel doors

Reynaers MasterLine 8

A high-quality aluminum panel door system, designed to deliver a solid aesthetics, excellent thermal insulation, and a superior level of security and comfort. Perfectly suited for residential and commercial spaces where individual style is a priority.

Technical Specifications:

  • Thermal Insulation (Uf): ~1.4 W/m²K (passive house level)
  • Airtightness: Class 4 (High performance)
  • Water Tightness: ~7A
  • Wind Load Resistance: ~C2
  • Max. Vent Height: up to 3000 mm
  • Min. Frame-Vent Width: from 68.5 mm
  • Access Control & Comfort Options: Low / Zero threshold, concealed hinges, integrated drainage, and anti-panic solutions



*Technical specifications may vary based on construction, hardware, and infill options – please contact us for a free consultation to receive precise data.

*To discover how this system can be tailored to your project, contact us for a free consultation.

Panel doors

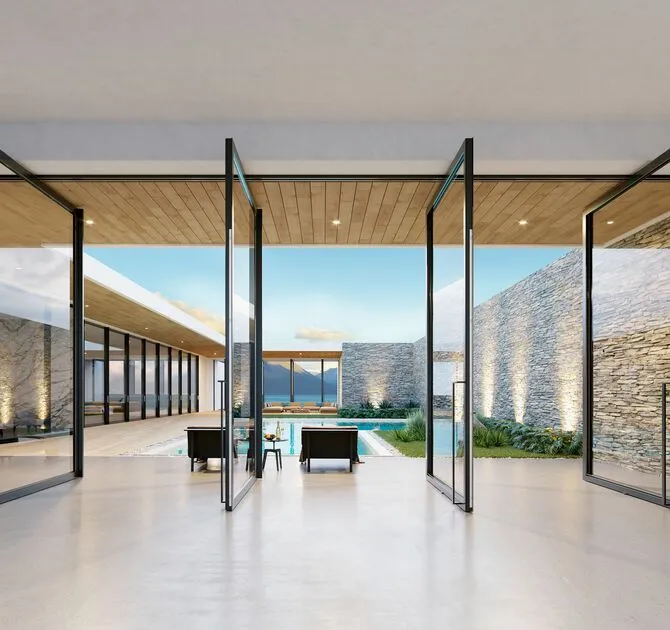

Pivot doors

Pivot doors

Reynaers MasterLine 8

A high-end aluminum entrance door system designed for modern buildings and prestigious spaces where solid design, excellent thermal insulation, reliable comfort and security are essential. Perfectly suited for both residential and commercial projects.

Technical Specifications:

  • Thermal Insulation (Uf): ~1.4 W/m²K
  • Airtightness: Class 4 (High performance)
  • Water Tightness: High performance (e.g., Class 7A)
  • Wind Load Resistance: High performance (Class C2/C3)
  • Acoustic Insulation: Up to 45 dB
  • Available Dimensions: 2500x4000
  • Min. Profile Width: from 68.5 mm
  • Comfort Solutions: Low / Zero threshold, anti-panic options
  • Aesthetics: Flush lines, expansive glazed areas, elegant aluminum frame




*Technical parameters may vary depending on the specific configuration, glazing unit, and threshold type.

*To discover how this system can be tailored to your project, contact us for a free consultation.

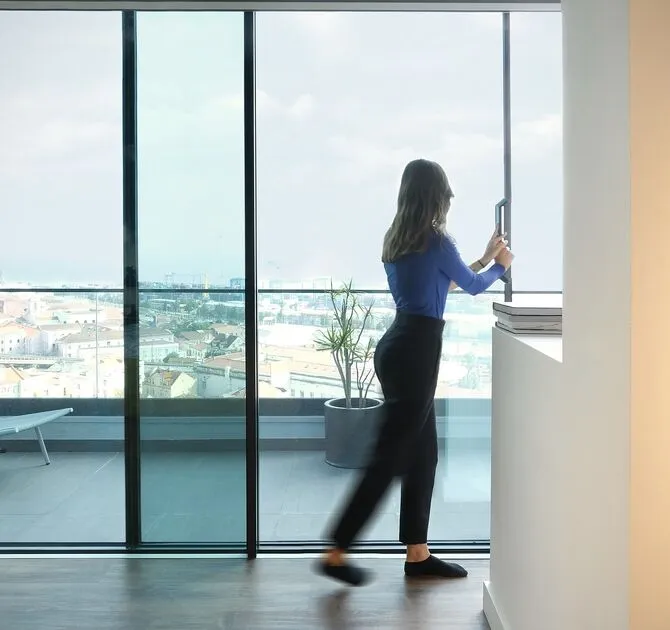

Sliding System

Reynaers HiFinity

This premium aluminum sliding door system features ultra-slim profiles, enabling the creation of expansive panoramic glazed areas and minimalist architecture.

A key advantage is the unique magnetic closing system – the only solution of its kind in the aluminum industry. The magnets allow for effortless operation of exceptionally heavy vents without the need for automation, ensuring the system remains user-friendly even at significant weights.

Operation:

  • Manual
  • Magnetic (easy to operate, no power required)
  • Automatic

Technical Specifications:

  • Thermal Insulation: Uw down to 0.8 W/m²K
  • Airtightness: Class 4
  • Water Tightness: E750
  • Wind Load Resistance: C5
  • Acoustic Insulation: up to 46 dB
  • Max Vent Height: up to 4000 mm
  • Max. Vent Width: up to 3500 mm
  • Max. Vent Weight: up to 750 kg
  • Min. Visible Profile Width: from ~35 mm

*Technical specifications may vary depending on the glazing unit, configuration, and the selected system version.

*To discover how this system can be tailored to your project, contact us for a free consultation.

Sliding System

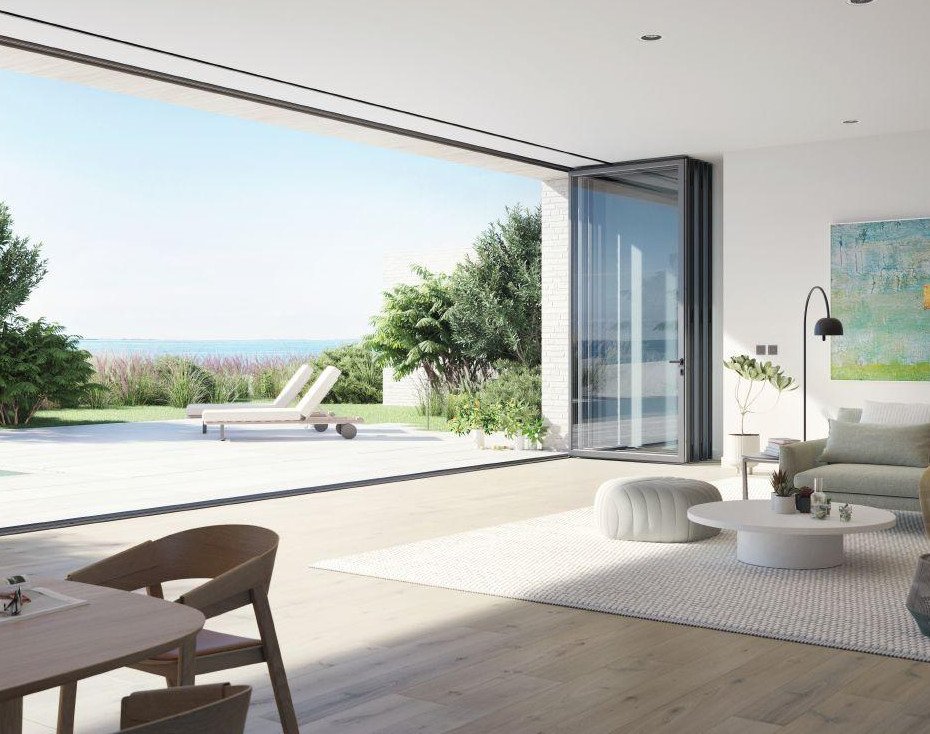

Folding System

Folding System

Schüco AS FD 90. HI

This aluminum folding-sliding door system is designed to completely open up the facade, seamlessly merging indoor and outdoor spaces. Slim profiles and flexible configurations offer architects unrivaled design freedom for both residential and commercial projects.

Technical Specifications:

  • Thermal Insulation: Uw down to 0.8 W/m²K
  • Airtightness: Class 4
  • Water Tightness: E750
  • Wind Load Resistance: up to C3/B5
  • Acoustic Insulation: up to 47–48 dB
  • Max. Vent Height: up to 3500 mm
  • Max. Vent Width: up to 1500 mm
  • Max. Vent Weight: up to 150 kg
  • Total System Width: ~10.5 m (up to 7–9 vents)
  • Profile Depth: 90 mm

*Technical parameters may vary depending on the selected configuration, glazing unit, and threshold type.

*To discover how this system can be tailored to your project, contact us for a free consultation.

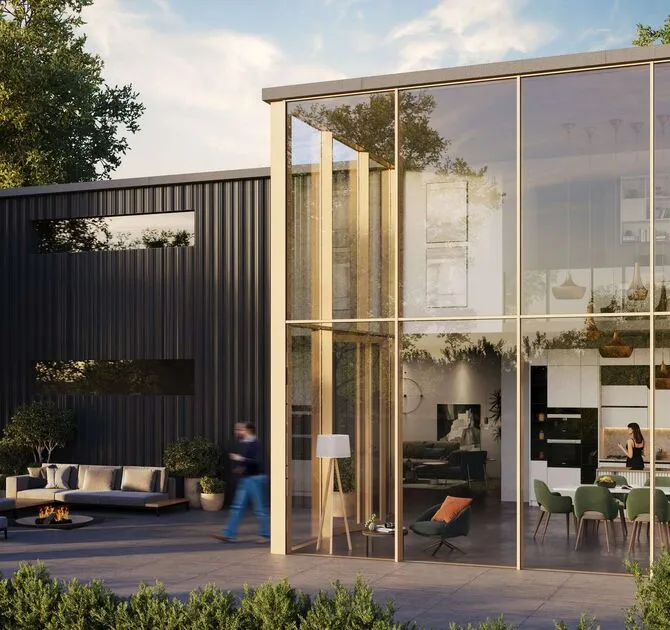

Facade System

Reynaers SlimWall 35

This ultra-slim aluminum facade system is designed for modern buildings featuring expansive glazed areas and minimalist architecture. The system enables the creation of elegant facades with a visible profile width of just 35 mm, while maintaining high energy efficiency and Passive House level thermal insulation.

Technical Specifications:

  • Thermal Insulation: Uf up to 0.71 W/m²K
  • Facade Thermal Transmittance: Ucw up to ~0.8 W/m²K
  • Airtightness: AE1200
  • Water Tightness: RE1200
  • Wind Load Resistance: up to 2000 Pa
  • Sound Insulation: up to 47 dB
  • Security Class: RC2
  • Minimum Visible Profile Width: 35 mm
  • Glazing Thickness: 24–57 mm
  • Max. Glass Weight: up to 450 kg


*Technical specifications may vary depending on the facade structure, glazing unit, and selected configuration.

*To find out how this system can be adapted to your project, contact us for a free consultation.

Facade System
