Cortizo TP 62 Facade System

Cortizo TP 62 Facade System

Cortizo TP-62 is an advanced, durable aluminum system for large-format glass facades, blending modern aesthetics with high energy efficiency.

Modern Aesthetic

Minimal profile width offers a sleek, slim-line look.

High Energy Efficiency

Strong insulation barrier (Ucw ≥ 0,6 W/m²K) cuts heating and cooling costs.

Weatherproof & Reliable

Top-class air, water, and wind resistance ensure comfort in harsh weather.

Impact Resistant

Holds an I5/E5 rating for enhanced structural safety and reliability.

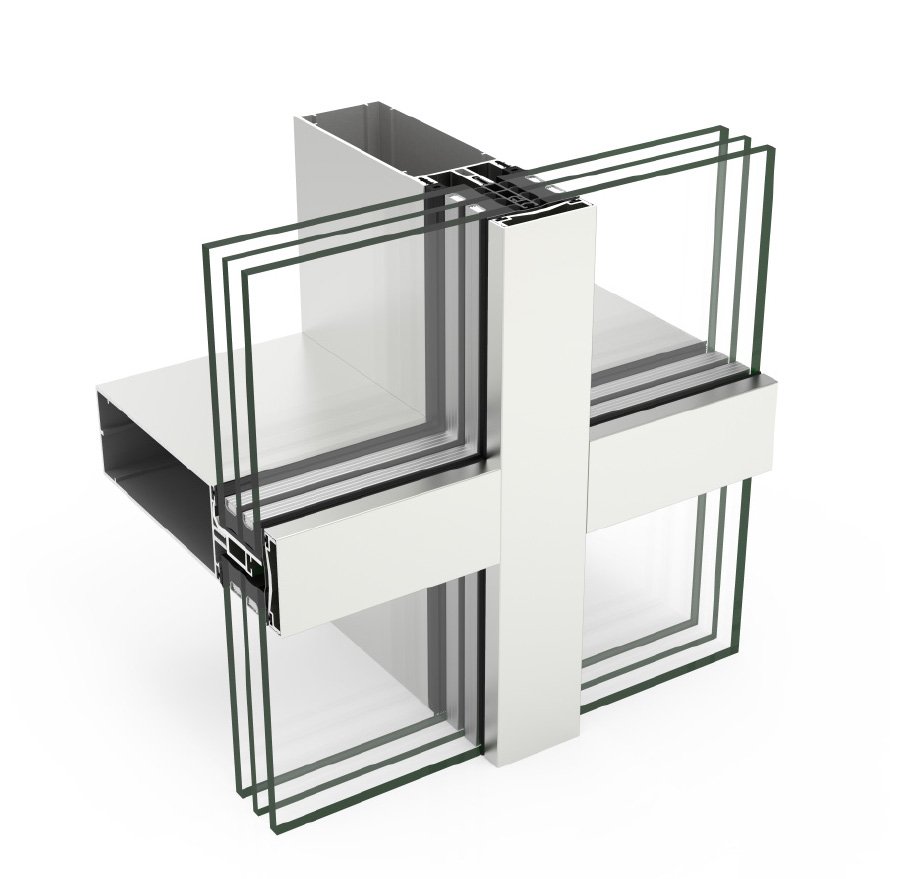

Technical Specifications

Visible profile width 62 mm
Max. element dimensions depends on technical project
Max. element weight depends on structure / glass type
Thermal insulation ≥ 0,6 W/m²K
Glass thickness 4–64 mm
Airtightness class AE
Watertightness RE1500
Sound insulation depends on glazing unit (dB)
Impact resistance I5 / E5
