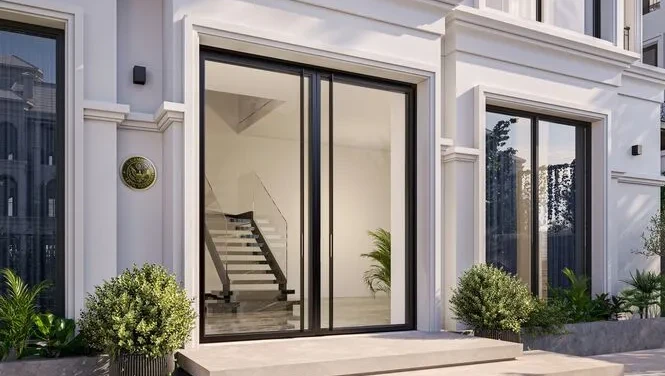

Reynaers ConceptSystem 77 Doors

Reynaers ConceptSystem 77 Doors

Reynaers ConceptSystem 77 is a dependable aluminum door system combining high comfort, security, and design freedom. It delivers an excellent balance of price and performance.

Wide Range of Design Options

The system offers numerous colors, surface finishes, and configurations, allowing the doors to match any interior or facade.

High Thermal Insulation

Its modern profile construction ensures good thermal efficiency and comfortable indoor climate.

Reliability and Durability

The aluminum profiles resist environmental impacts, ensuring the doors remain functional and aesthetically pleasing over the long term.

High Security Standards

Compatible with advanced locking systems and security hardware for enhanced forced-entry resistance.

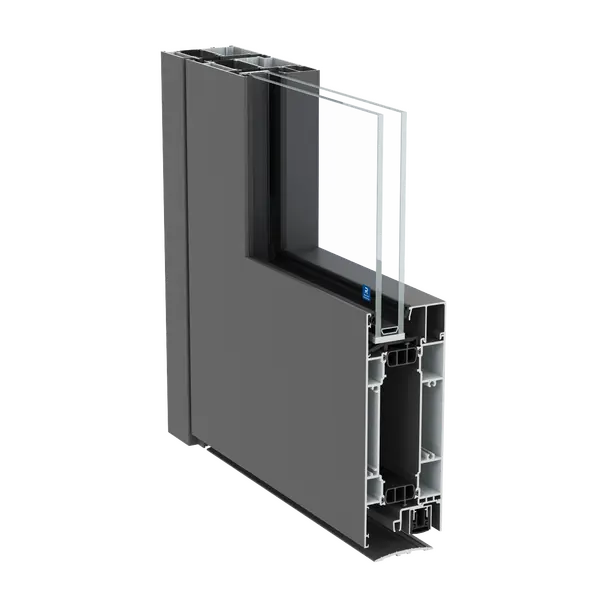

Technical Specifications

Thermal Transmittance Uf from 1,8 W/m²K (priklausomai nuo konfigūracijos)
Max. door height up to 3000 mm
Max. door width up to 1400 mm
Max. glass / panel thickness up to 63 mm (sash)
Max. leaf weight up to 250 kg
Airtightness class 4
Watertightness class 7A
Wind load resistance class C2
Burglar resistance RC2–RC3
Sound insulation ~41–42 dB
Installation depth ~68 mm
Min. visible face width from ~68 mm (frame)
