Reynaers MasterLine 10 Doors

Reynaers MasterLine 10 Doors

Reynaers MasterLine 10 is a premium, high-efficiency aluminum door system combining exceptional security and Passive House performance for new builds and renovations.

Maximum Security and Reliability

The MasterLine 10 is recognized as one of Reynaers’ most secure and durable door systems, specifically engineered for high-traffic use.

Passive House Energy Efficiency

The system achieves Passive House thermal performance, ensuring exceptionally low heat loss.

Flexible Configurations

Offered in entrance and terrace door variants with multiple opening styles and custom design options.

High Air, Water, and Wind Resistance

The system delivers very high performance ratings for air tightness, water permeability, and wind resistance.

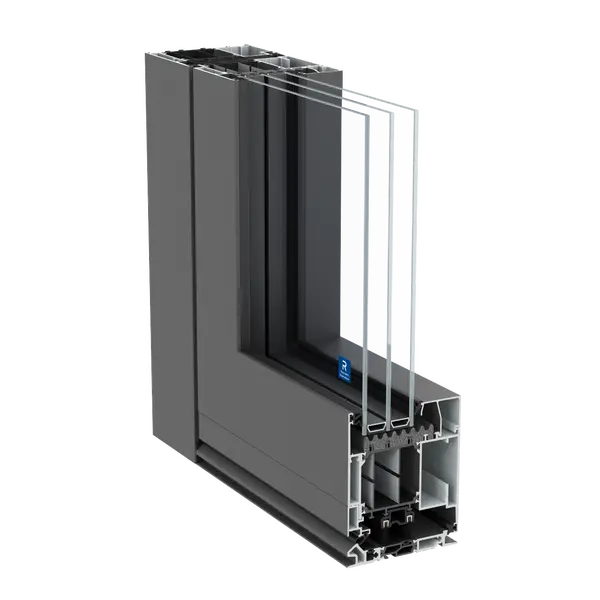

Technical Specifications

Thermal Transmittance Uf from 0,96 W/m²K / Ud from 0,81 W/m²K
Max. door height up to 3000 mm
Max. door width up to ~1500–1700 mm
Max. glass / panel thickness up to ~60–70 mm
Max. leaf weight up to 200 kg
Airtightness class 4
Watertightness class 9A
Wind load resistance class C3
Burglar resistance up to RC2 / RC3
Sound insulation up to 40 dB
Installation depth frame: 97 mm
Min. visible face width from 162 mm (frame + sash)
