Reynaers MasterLine 8 Doors

Reynaers MasterLine 8 Doors

Reynaers MasterLine 8 is a premium aluminum door system engineered for maximum thermal insulation, security, and design flexibility. It is the ideal choice for both modern and prestigious projects.

High-Performance Thermal Insulation

Engineered for maximum energy efficiency, the system meets the rigorous requirements of passive house design.

Wide Range of Design Options

Offered in multiple variants, such as entrance, terrace, and pivot styles, to suit diverse architectural requirements.

Advanced Security & Protection

Fully adaptable to strict project safety codes, with options for anti-intrusion, fire protection, and heavy-use public applications.

Durability and Sustainability

Engineered for lasting reliability, this premium aluminum system incorporates a certified sustainable design.

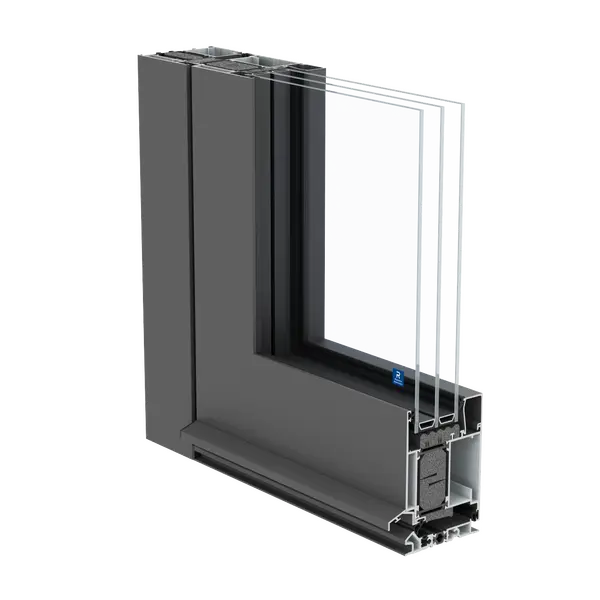

Technical Specifications

Thermal Transmittance Uf from 1,3 W/m²K / Ud from 0,98 W/m²K
Max. door height up to 3000 mm
Max. door width up to 1400–1600 mm
Max. glass / panel thickness up to ~66 mm
Max. leaf weight up to 200 kg (depending on hardware and configuration)
Airtightness class 4
Watertightness class 8A
Wind load resistance class C2
Burglar resistance up to RC2 / RC3
Sound insulation up to 43 dB
Installation depth 77 mm (frame)
Min. visible face width from 153 mm (frame + sash)
