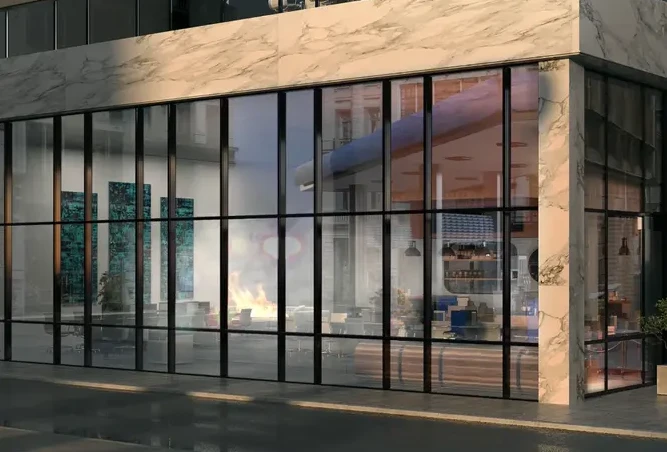

Reynaers ConceptWall 50 Facade System

Reynaers ConceptWall 50 Facade System

ConceptWall 50 is an aluminum facade system that delivers design freedom, maximum natural light, and high performance. It combines excellent thermal, acoustic, and structural features for any project.

Architectural Freedom

Supports facades of various shapes and sizes, including glass walls, roofs, and complex structures.

Excellent Thermal Performance

The high-insulation version meets passive house standards for maximum energy efficiency.

Large Glass Areas and Loads

Designed for large glazing units and heavy loads, perfect for modern commercial and public buildings.

High Tightness and Reliability

Excellent air, water, and wind resistance ensure long-term facade reliability.

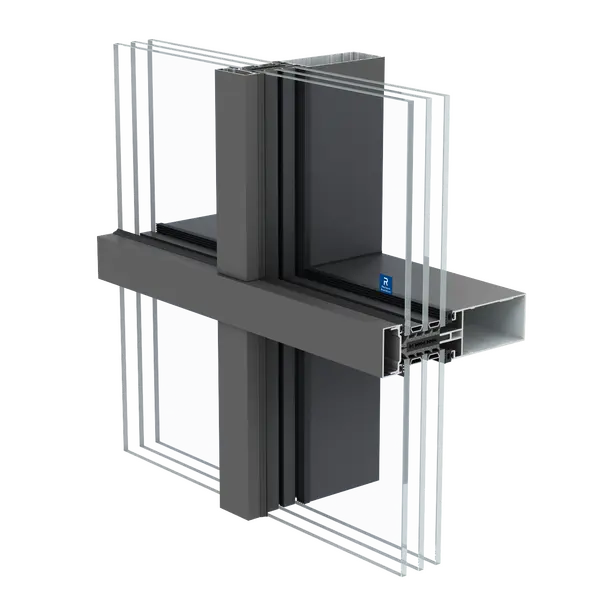

Technical Specifications

Visible profile width from 50 mm (mullion and transom)
Max. element dimensions depends on the project, glass type, and loads (large facade elements)
Max. element weight Up to 700 kg (glass weight)
Thermal insulation Uf down to 0,56 W/m²K (high-insulation variant)
Glass thickness configuration dependent (typically up to ~60 mm for facade systems)
Airtightness AE 1950
Watertightness RE 1950
Sound insulation ~47 dB
Impact resistance I5 – E5
Technical Specifications

cradle to cradle bronze

Cradle to Cradle Bronze
