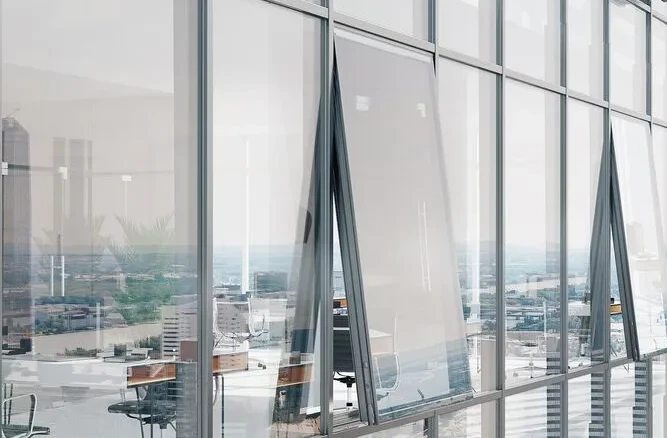

Reynaers ConceptWall 60 Facade System

Reynaers ConceptWall 60 Facade System

Reynaers ConceptWall 60 is a high-performance aluminum facade system built for large glass panes and heavy loads. Ideal for high-rises and expansive glass designs.

High Structural Capacity

Built for large glass elements and high wind loads, perfect for complex facade projects.

Excellent Thermal Performance

The high-insulation version achieves passive house levels for maximum energy efficiency.

High Tightness Levels

Exceptional air, water, and wind resistance ensure reliable facade performance even in extreme conditions.

Large Glass Areas

Allows for large-format glass elements and wide spans for a modern facade aesthetic.

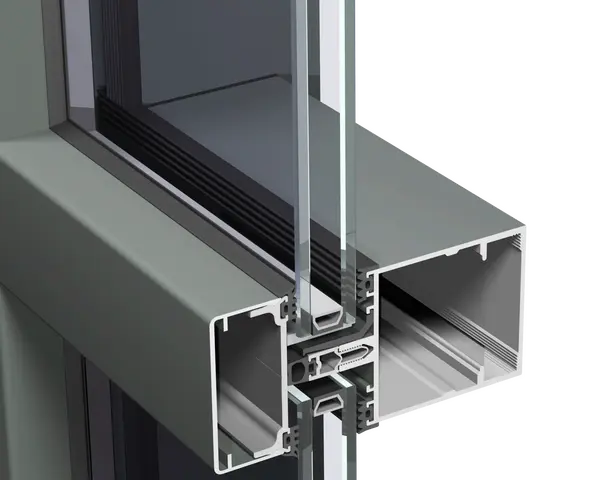

Technical Specifications

Visible profile width from 60 mm (mullion/transom)
Max. element dimensions project and load dependent (large facade elements)
Max. element weight up to 750 kg
Thermal insulation Uf down to 0,6 W/m²K
Glass thickness depends on the configuration
Airtightness AE 1950
Watertightness RE 1950
Sound insulation ~55 dB
Impact resistance I5 – E5
Technical Specifications

Certified Component Passive House Institute

Passive House

cradle to cradle bronze

Cradle to Cradle Bronze
