Reynaers ConceptWall 86 Facade System

Reynaers ConceptWall 86 Facade System

Reynaers ConceptWall 86 is a high-end aluminum facade system for large, complex projects. Built for fast installation and massive glass structures, it delivers top-tier thermal and structural efficiency.

Tailored for Large-Scale Projects

Built for large buildings and facades requiring high performance, reliability, and fast installation.

Excellent Insulation

Delivers high thermal insulation and high air, water, and wind resistance.

Minimal Element Joints

Optimized design reduces joint lines, creating a cleaner, more seamless facade aesthetic.

Wide Range of Designs and Solutions

A variety of facade types and structural solutions are available, including structural glazing, double-skin facades, and integrated elements.

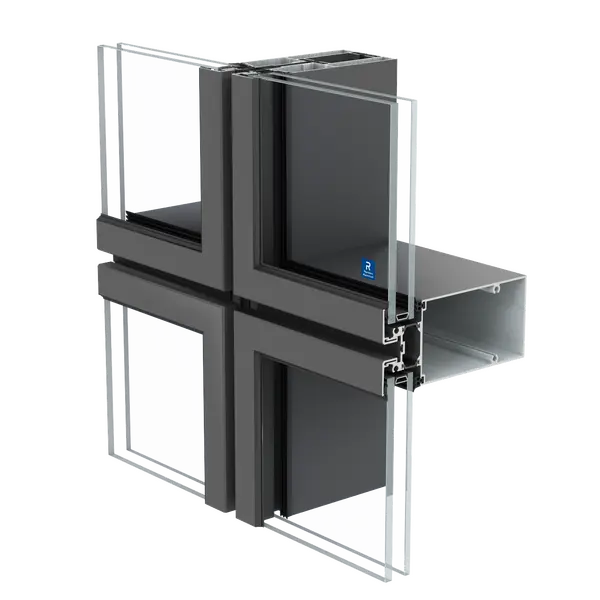

Technical Specifications

Visible profile width from 86 mm (mullion/transom)
Max. element dimensions depends on the project and loads (large facade elements)
Max. element weight up to 300 kg (glass weight)
Thermal insulation Uf ~1,9 W/m²K
Glass thickness configuration dependent
Airtightness AWW
Watertightness RE1200
Sound insulation ~41(-2;-6) dB
Impact resistance I5 – E5
Technical Specifications

cradle to cradle bronze

Cradle to Cradle Bronze
