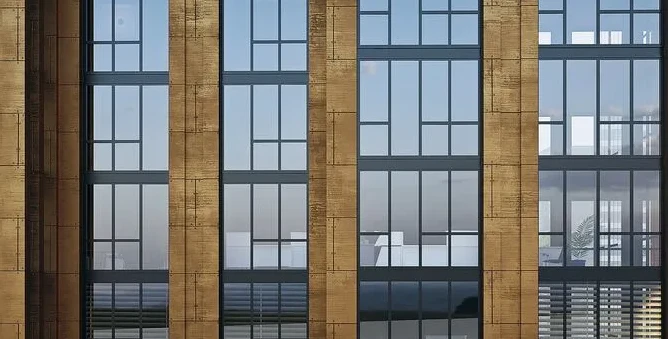

Reynaers MasterWall Facade System

Reynaers MasterWall Facade System

Reynaers MasterWall is a premium window wall system for mid and high-rise buildings. It pairs design freedom with top performance, while being fast to install, airtight, and highly comfortable.

Architectural Freedom

Offers a wide range of facade designs, from classic window layouts to horizontal, vertical, or hybrid structures.

Efficient Fabrication and Installation

Engineered to cut production and installation time, making it ideal for large-scale projects.

High Level of Comfort

Provides excellent thermal, acoustic, and airtightness performance for a comfortable indoor climate.

High Functionality

A wide range of opening elements and additional options are available, including balcony railings, solar control, concealed drainage, or automation.

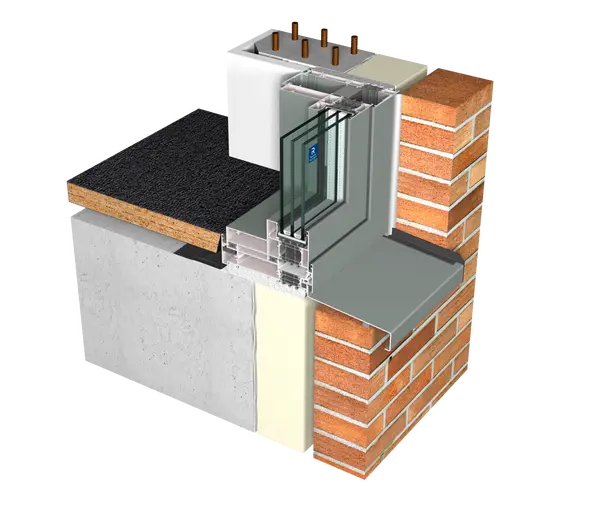

Technical Specifications

Visible profile width from ~80 mm
Max. element dimensions height: up to 2800 mm, width: up to 1200 mm
Max. element weight up to 130 kg
Thermal insulation Uf ~2,1 W/m²K
Glass thickness from 6 to 62 mm (for frame), from 13 to 72 mm (for vent)
Airtightness class A5
Watertightness class E900
Sound insulation ~49 dB
Impact resistance I5 – E5
