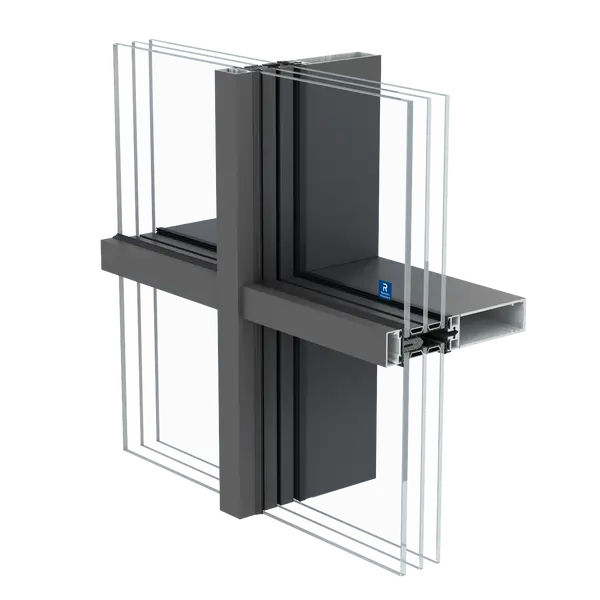

Reynaers SlimWall 35 Facade System

Reynaers SlimWall 35 Facade System

Reynaers SlimWall 35 is an ultra-slim aluminum facade system built for minimalist architecture. It combines high thermal and structural performance with excellent energy and acoustic properties for a sleek, lightweight design.

Minimalist Design

Slim 35 mm sightlines create a lightweight, modern facade while maximizing the glass area.

Excellent Thermal Performance

High thermal insulation, suitable even for passive houses.

High Weather Resistance

Excellent air, water, and wind load performance ensures reliable long-term operation.

High Design Freedom

Easily integrates custom shapes, concealed drainage, and solar control elements.

High Security Level

RC2 security class and impact resistance ensure enhanced building protection.

Large Glass Elements

Designed for large glazing units and high loads, perfect for modern commercial and residential projects.

Technical Specifications

Visible profile width from 35 mm
Max. element dimensions depends on the project and loads (e.g., openable elements up to ~1.35 × 2.5 m)
Max. element weight up to 450 kg
Thermal insulation Uf ~0,71 W/m²K
Glass thickness from 24 up to 57 mm
Airtightness AE 1200
Watertightness RE1200
Sound insulation ~47 dB
Impact resistance I5 – E5
Technical Specifications

Archiproducts Awards 2024

 Archiproducts Awards 2024 - Sustainability

 Passive House

Cradle to Cradle Bronze
