Reynaers ConceptSystem 77 Windows

Reynaers ConceptSystem 77 Windows

A multi-purpose aluminum system for residential and commercial use. ConceptSystem 77 combines performance with design flexibility for any architectural style.

Design and Aesthetics

  • Functional Design – A versatile, standard profile that seamlessly blends with various building styles.
  • Hidden Vent Version – An opening window that appears fixed from the exterior, providing a seamless and minimalist facade aesthetic.

Energy Efficiency

  • Multiple insulation levels available: Light, Standard, High Insulation, and High Insulation+ – ranging from economical solutions to the highest thermal efficiency.
  • High thermal performance: Uf≈1.8 W/m²K and Uw≈1.3 W/m²K (depending on the configuration).

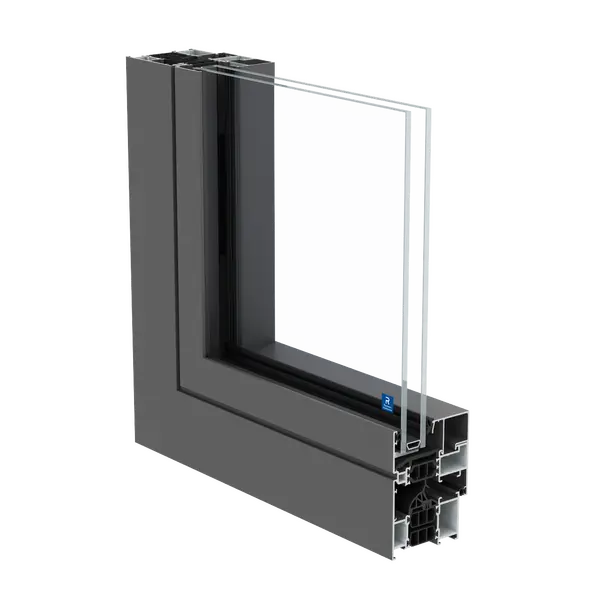

Technical Specifications

Frame depth ~68 mm (frame)
Thermal insulation Uf down to 1,8 W/m²K, Uw down to 1,3 W/m²K
Glazing from 4 mm to 63 mm (sash), from 4 mm to 52 mm (frame)
Sound insulation up to 42 dB
Tightness Air: class 4, Water: E900, Wind: C5
Burglar resistance up to RC3
Opening types Tilt, side-hung, pivot, and fixed windows
Finishes RAL powder coating, anodizing, and wood-effect
Technical Specifications

cradle to cradle bronze

Cradle to Cradle Bronze

Brochures

Reynaers CS77
