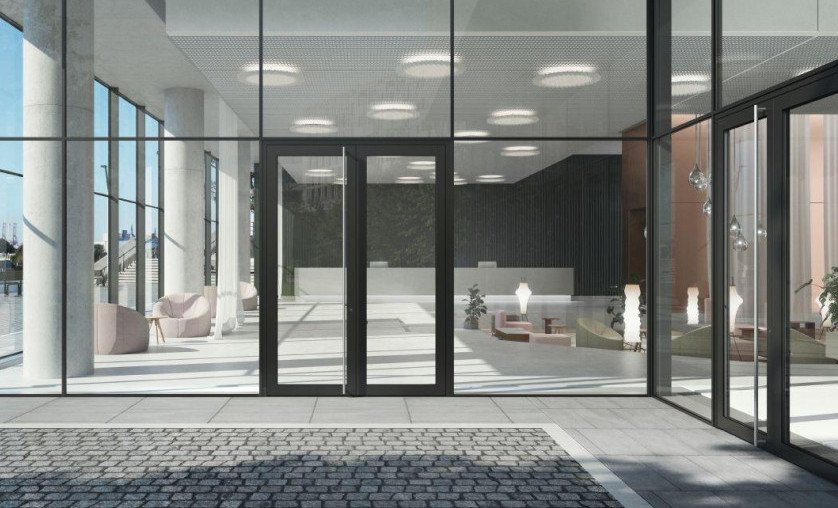

Schüco AD UP 90 Doors

Schüco AD UP 90 Doors

Schüco AD UP 90 is a high-end aluminum door system for residential and commercial use. It pairs top-tier insulation and structural strength with broad design options to meet the most demanding technical and aesthetic standards.

Stability and Durability

A triple-shell design provides the necessary strength and dependable performance for oversized door configurations.

Energy Efficiency

The double-center seal technology and advanced insulation reduce energy waste while improving living comfort.

Weather and Water Resistance

Advanced gaskets and construction ensure a comfortable interior by protecting against harsh environmental elements.

Barrier-Free Accessibility

Doors can be configured with low-profile or completely level thresholds.

Technical Specifications

Thermal Transmittance Uf from ~1,3 W/m²K in the AD UP 90 base version
Max. door height ~2500 mm
Max. door width ~1250 mm
Max. glass / panel thickness ~68 mm
Max. leaf weight up to 160–200 kg
Airtightness class 4
Watertightness class 5A
Wind load resistance class C2/B2
Burglar resistance up to RC2
Sound insulation up to ~42 dB (depending on the glass / construction)
Installation depth 90 mm
Min. visible face width ~170 mm

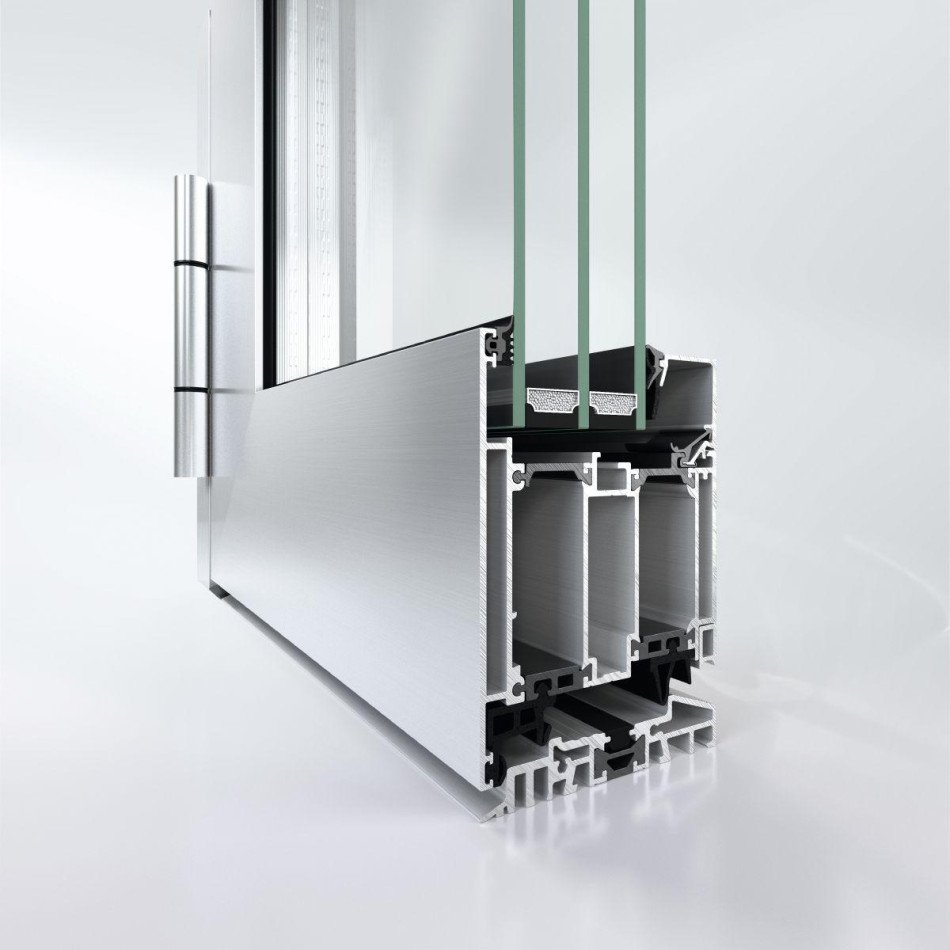

Technical Specifications

cradle to cradle silver
