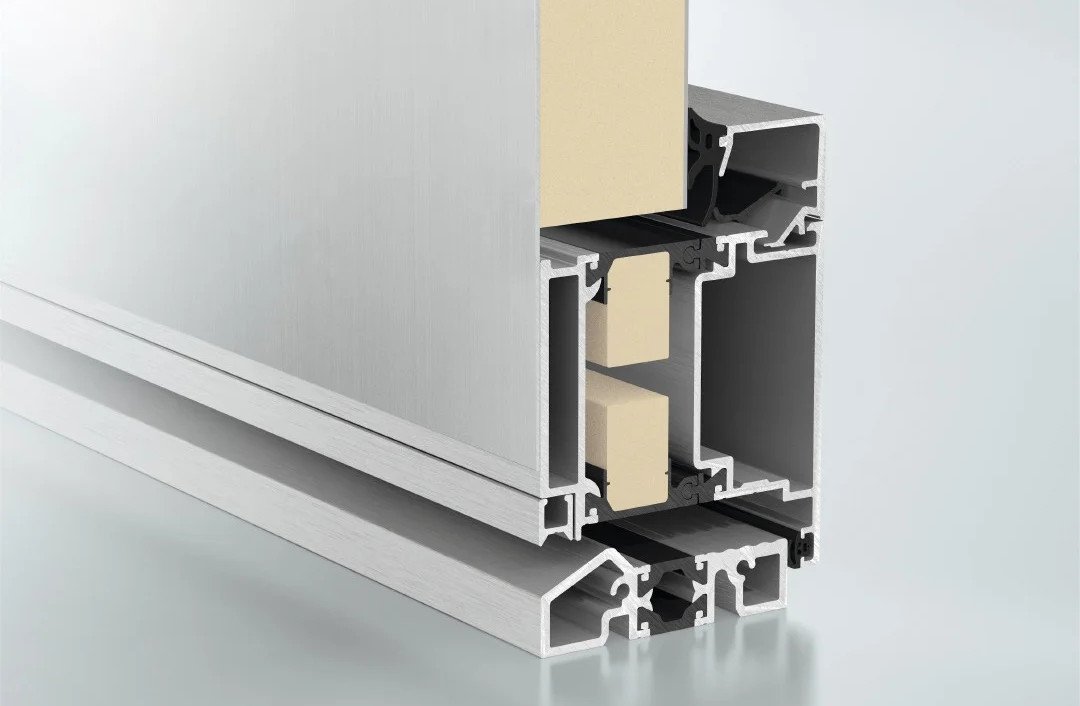

Schüco ADS 70.HI Doors

Schüco ADS 70.HI Doors

Schüco ADS 70.HI – exceptionally well-insulated aluminum doors designed for residential and commercial buildings where energy efficiency, security, and a seamless modern design are essential

Thermal Insulation

The system design ensures Uf ≥ 1,7 W/(m²·K), thereby helping to reduce heat loss and improve the building's energy efficiency.

Modern design

Slim profiles and a wide range of design choices.

Tailored to any space

Doors can be custom-made in a variety of configurations and opening directions, including inward and outward opening.

Compatibility

Compatible with other Schüco window and facade systems to create a unified architectural look.

High security

Can be manufactured up to RC3 resistance class (RC3 provides protection against more experienced intruders using crowbars).

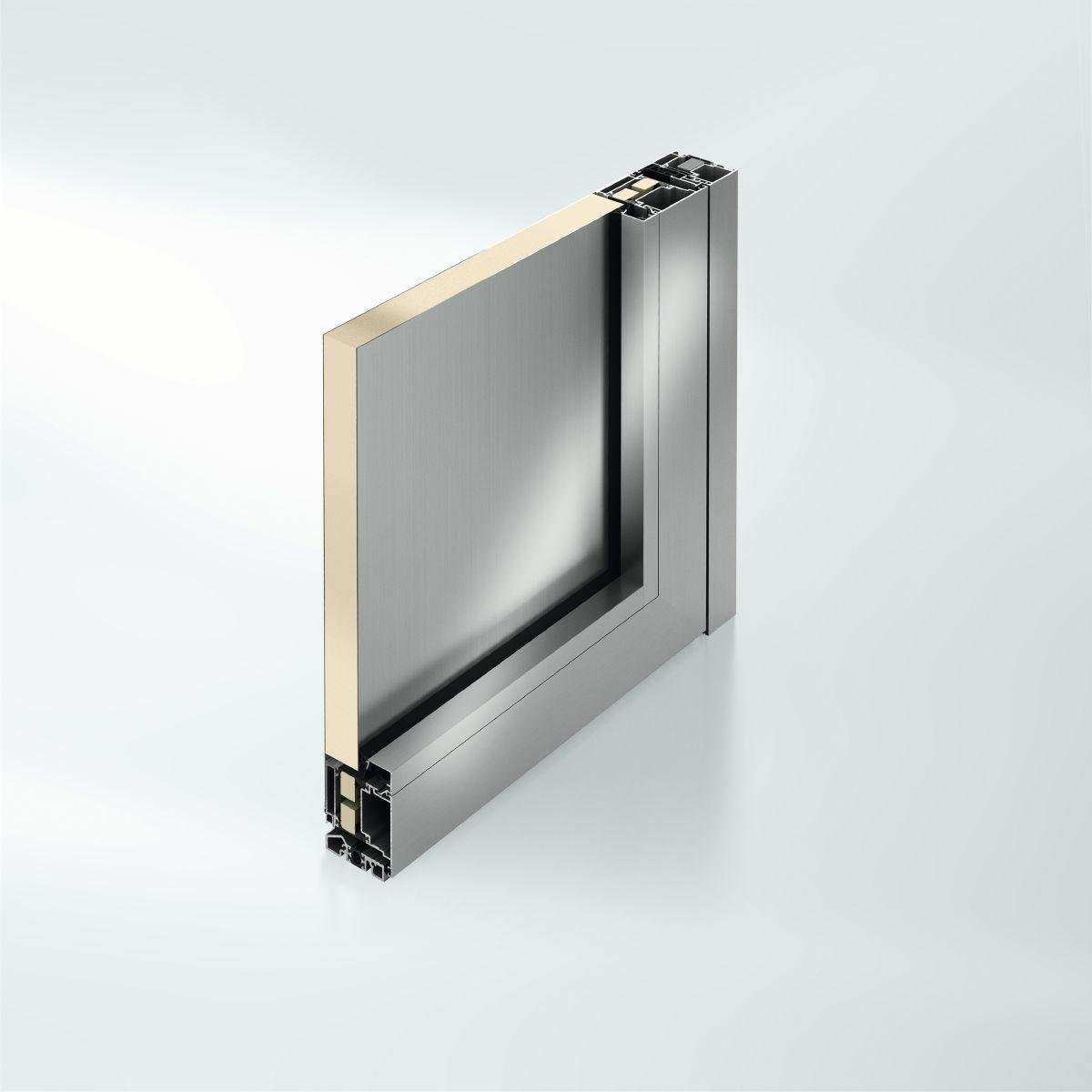

Technical Specifications

Thermal Transmittance Uf ≥ 1,7 W/(m²·K)
Max. door height 2500 mm
Max. door width 1250 mm
Max. glass / panel thickness 52 mm
Max. leaf weight 150 kg
Airtightness class 2
Watertightness class 5A
Wind load resistance class C3
Burglar resistance up to RC3
Sound insulation up to 43 dB (subject to glazing selection)
Installation depth 70 mm
Min. visible face width ~147 mm
