Schüco FWS 35 PD Facade System

Schüco FWS 35 PD Facade System

Schüco FWS 35 PD is a Panorama Design aluminum facade system with an exceptionally slim 35 mm face width. It allows for profile-free glass corners, maximizing transparency and natural light.

Ultra-Slim Panorama Design

A visible profile width of just ~35 mm creates a minimalist, clean facade appearance. The system also supports all-glass corner joints without vertical profiles, further enhancing the seamless panoramic effect.

High Transparency

The facade offers maximum visibility and exceptional aesthetics, making it perfect for premium projects centered on light, panoramas, and visual harmony with the surroundings.

Broad Design and Integration Options

The system combines with other Schüco Panorama Design options, such as ASS 77 PD sliding doors, to ensure a seamless facade appearance. Schüco AWS window systems with TipTronic automation, solar shading, and other components integrate seamlessly.

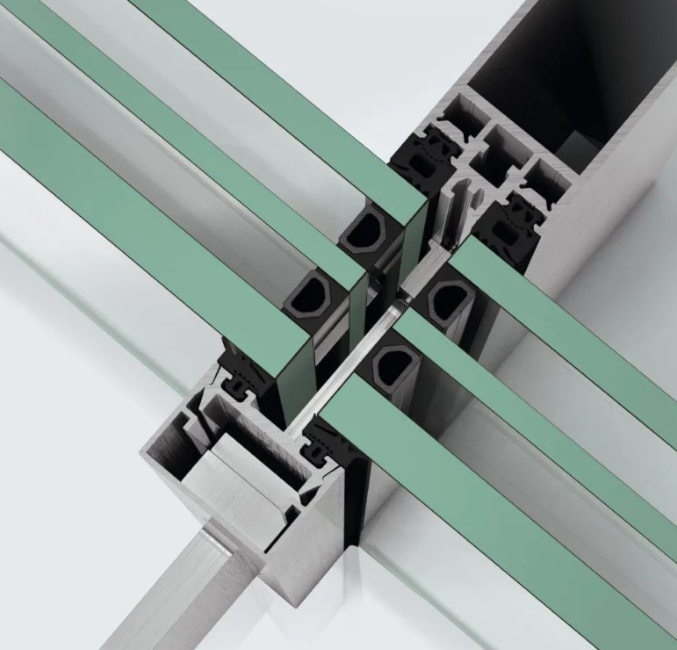

Technical Specifications

Visible profile width 35 mm
Construction depth ~65–150 mm (mullion) / ~70–155 mm (transom) – depending on the system version
Max. glass / panel thickness up to ~50 mm
Max. openable sash weight up to ~400 kg (standard system, HD version up to ~440 kg)
Max. fixed element weight up to ~400 kg (standard system)
Thermal insulation Uf down to ~0,88–0,9 W/(m²K) (SI / passive house)
Airtightness AE class
Watertightness RE 1200
Sound insulation up to ~49 dB (depending on glazing selection)
Impact resistance I5/E5 (depending on configuration)
Technical Specifications

Design awards:
