Lift-and-Slide Schüco ASE 60 System

Lift-and-Slide Schüco ASE 60 System

Schüco ASE 60 is a sliding and lift-and-slide aluminum door system tailored for modern architecture, expansive glass areas, and seamless indoor-outdoor living.

Energy Efficiency and Insulation

Schüco ASE 60 provides excellent thermal insulation to minimize heat loss and maximize energy savings.

Functionality and Comfort

The lift-and-slide mechanism ensures effortless movement of large panels. Optional SmartStop technology guarantees gentle, quiet dampening, while the flush threshold provides barrier-free access.

Security and Durability

Durable and weather-resistant aluminum construction with available RC 2 burglar resistance certification.

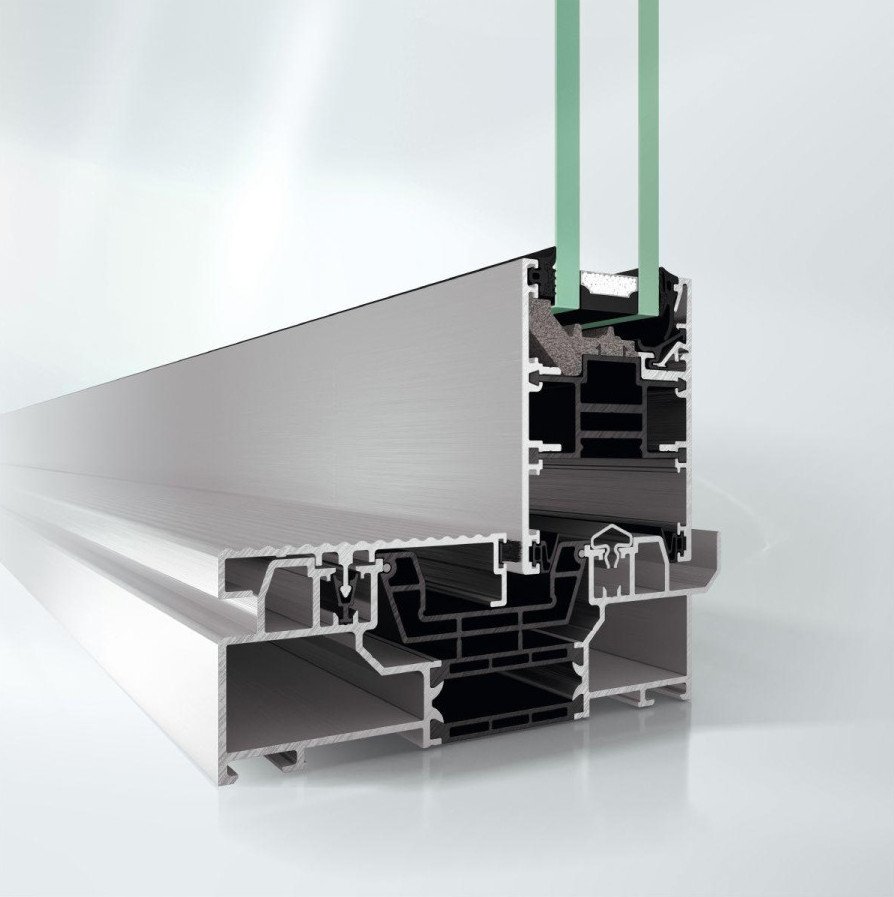

Technical Specifications

Vent height 1334 – 3500 mm
Vent width 630 – 3500 mm
Max. vent weight up to 500 kg
Max. system width up to 21 000 mm
Max. system height 3500 mm
System depth 140 – 232 mm
Max. glass thickness 40 mm
Thermal insulation Uw from 1,1 W/(m²·K)
Sound insulation up to 41 dB
Airtightness class 4
Watertightness E 900
Wind load resistance C5 / B5
Burglar resistance up to RC 2
