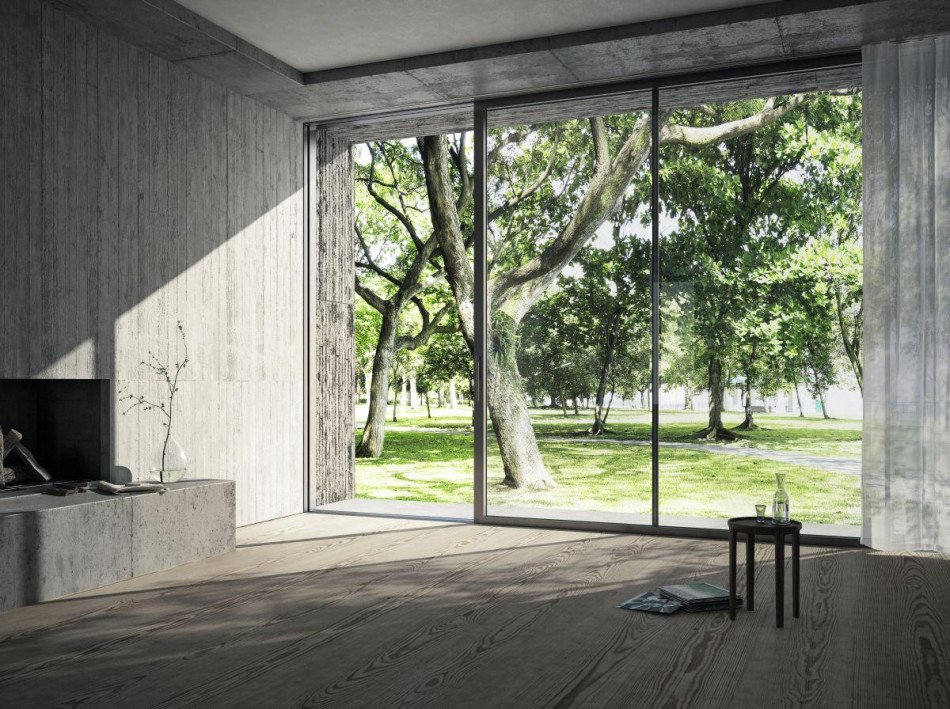

Lift-and-Slide Schüco ASE 80.HI System

Schüco ASE 80.HI is a premium lift-and-slide system for large glass surfaces, combining excellent insulation, minimalist design, and a flush threshold.

Energy Efficiency and Insulation

High thermal insulation properties minimize heat loss and maximize energy savings.

Large Open Spaces and Aesthetics

Wide glass surfaces and slim profiles deliver a sleek, minimalist look.

High Comfort and Functionality

Effortless opening and closing, with optional automated drive systems and SmartClose technology.

Barrier-Free Access

A flush threshold design ensures a seamless transition between indoors and outdoors.

High Durability and Security

Features up to RC2 burglar resistance and excellent air, water, and wind tightness.

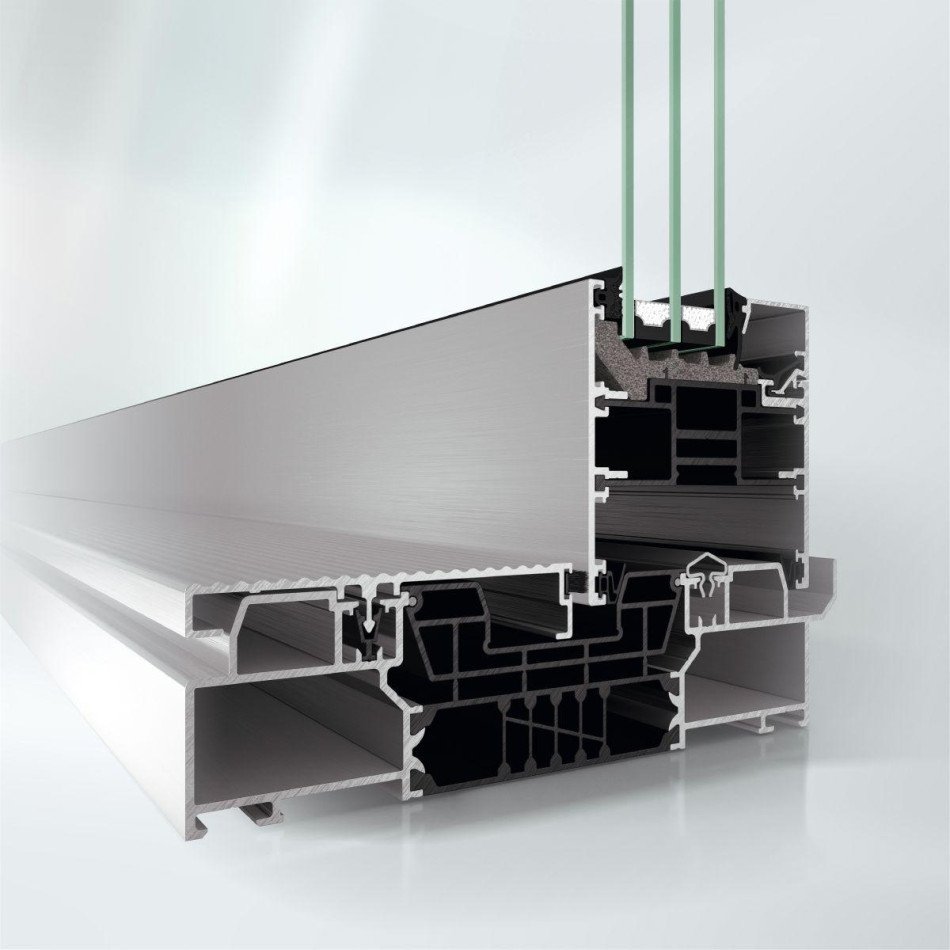

Technical Specifications

Vent height Up to ~3500 mm (depending on configuration)

Vent width up to ~3500 mm

Max. vent weight Up to 500 kg (up to 600 kg with TipTronic)

Max. system width Up to ~6500 mm (per unit)

Max. system height up to ~3000–3200 mm

System depth vent: 80 mm; frame: 180 mm

Max. glass thickness ~60 mm

Thermal insulation Uw from ~0.83–0.99 W/(m²K) (depending on dimensions and glazing)

Sound insulation up to ~43–45 dB (depending on construction)

Airtightness class 3–4 (high airtightness)

Watertightness class E900

Wind load resistance class B5/C5

Burglar resistance up to RC2

cradle to cradle bronze

Design Award 2018
