Sliding Schüco ASE 67 PD System

Sliding Schüco ASE 67 PD System

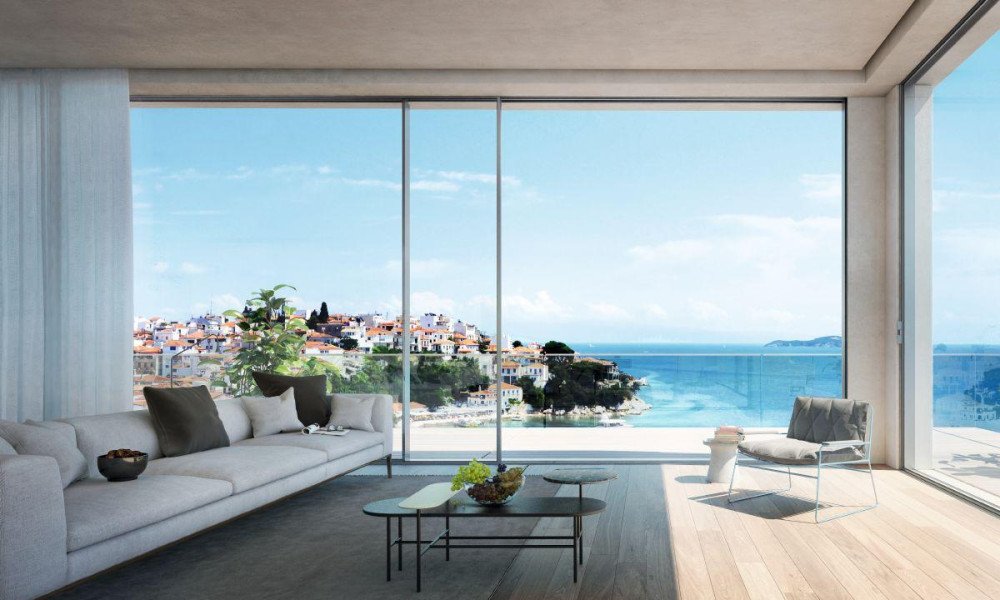

Schüco ASE 67 PD is an aluminum panoramic design sliding door system with ultra-slim profiles, designed for maximum daylight transmission and modern aesthetic solutions.

Panoramic Design and Expansive Glazing

 The system offers maximum transparency and natural light transmission, utilizing ultra-slim sightlines and an integrated outer frame.

Comfort

The optional flush threshold creates a seamless, barrier-free transition between indoor and outdoor living spaces.

Effortless Operation

The manually operated vents glide effortlessly, ensuring smooth and easy handling even with sash weights of up to 400 kg.

Security and Structural Integrity

The system can be configured to meet RC2 burglar resistance standards and delivers exceptional air permeability and wind load resistance.

Technical Specifications

Vent height up to 3000 mm
Vent width up to 3200 mm
Max. vent weight 400 kg
Max. system width depending on the configuration and number of panels
Max. system height 3000 mm
System depth 67 mm (sash profile)
Max. glass thickness up to 49 mm
Thermal insulation Uw from ~1,0 W/(m²·K)
Sound insulation up to ~46 dB (depending on glazing selection)
Airtightness class 4
Watertightness class 9A
Wind load resistance B3/C3
Burglar resistance up to RC2 (depending on configuration)

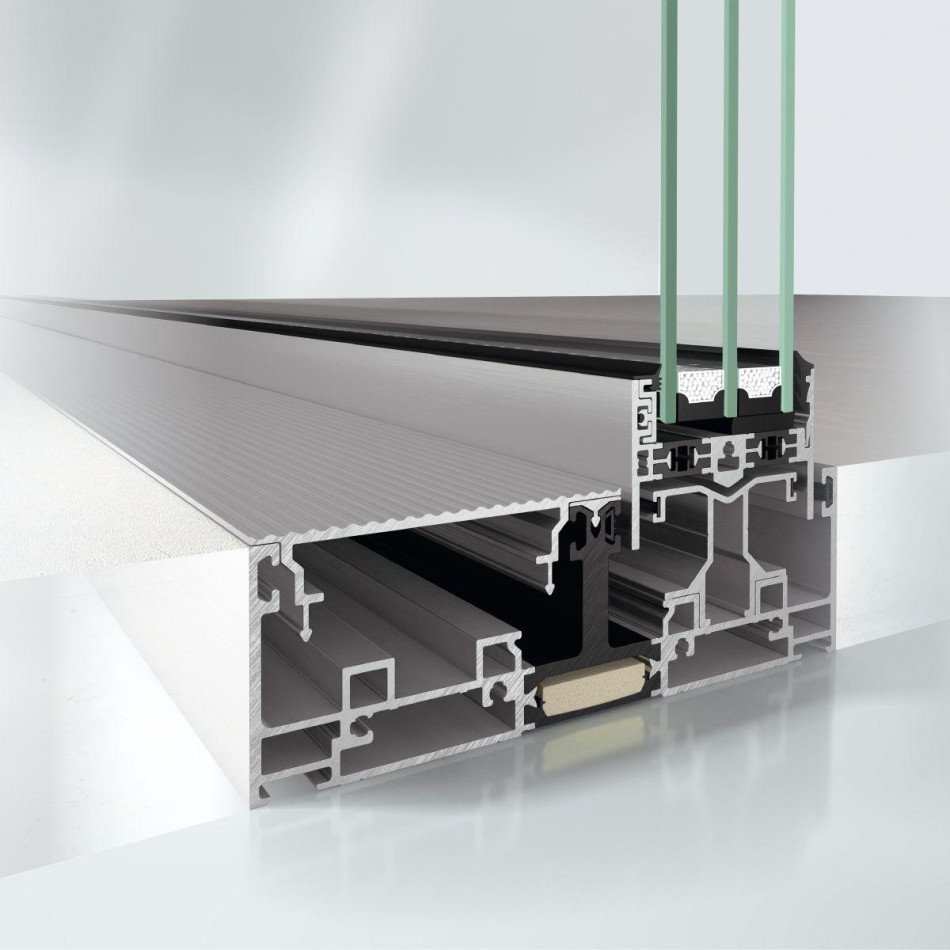

Technical Specifications

Design Award 2019

reddot design award winner 2019
