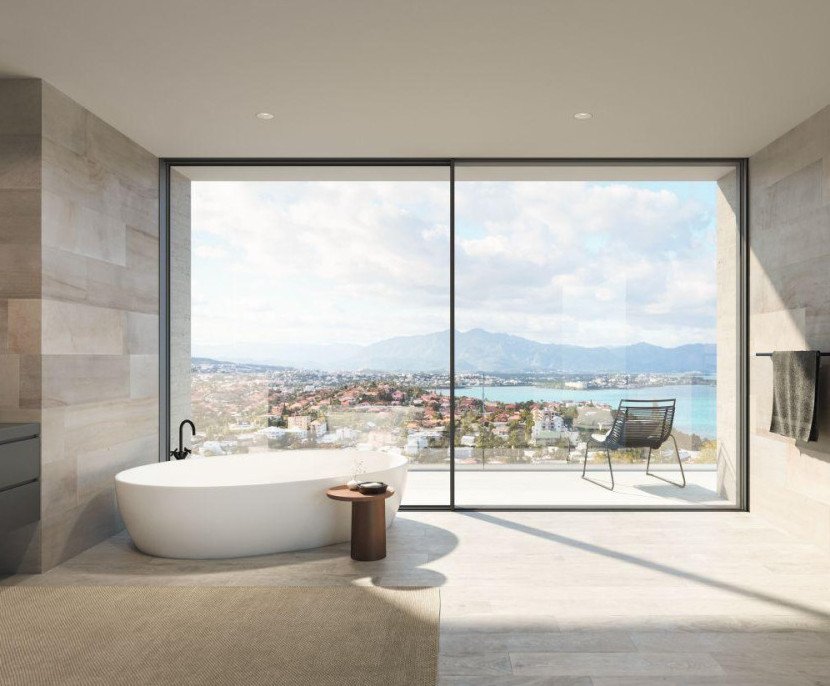

Sliding Schüco AS PD 75 System

Schüco AS PD 75.HI Performance Line is a premium, automated aluminum lift-and-slide system with a Panorama Design, built for maximum openness and ultimate comfort.

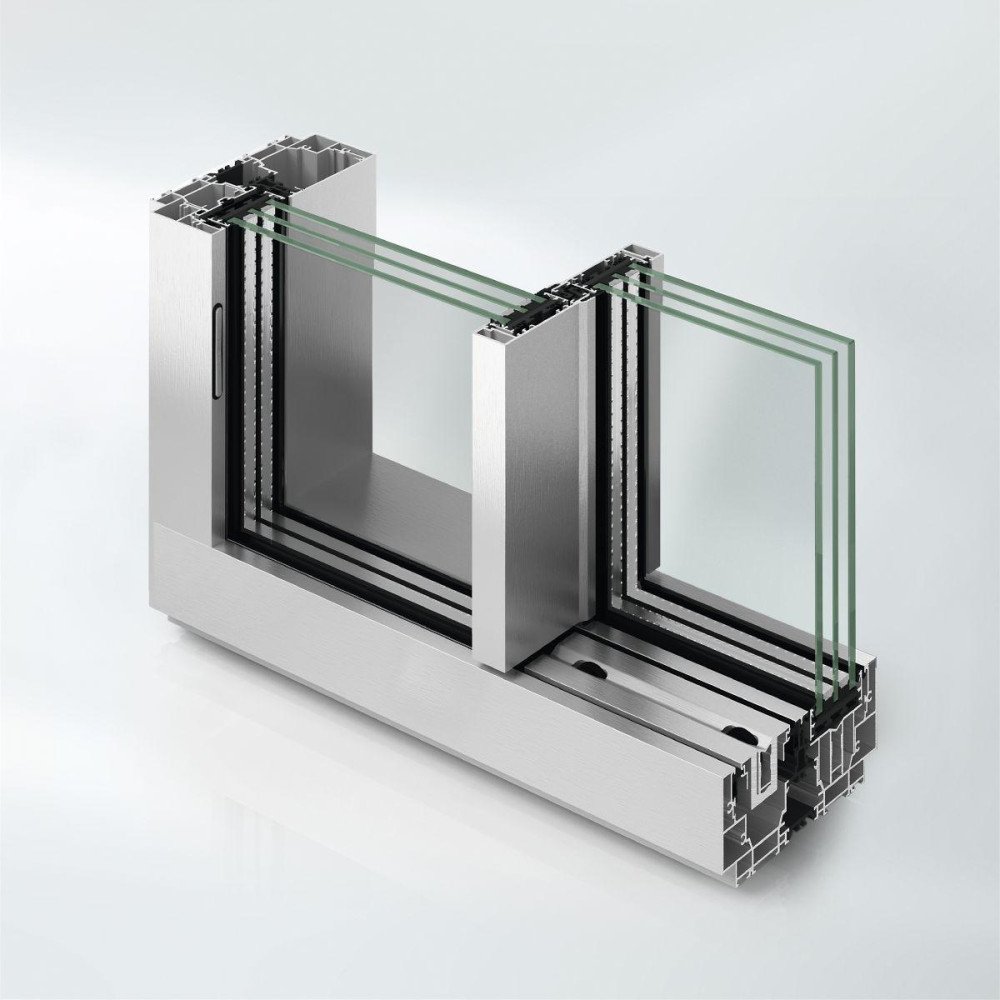

Panoramic Design and Slim Profiles

Large glass panes and narrow 35 mm profiles maximize outdoor views.

Lift-and-Slide and Barrier-Free Transition

A lift-and-slide mechanism enables a completely flush threshold for seamless indoor-outdoor access.

Automated Control and "Smart Home" Integration

Schüco TipTronic drive allows push-button operation and full smart home integration.

High Security Level

Performance Line version achieves up to an RC3 burglar resistance rating.

Technical Specifications

Vent height up to 3500 mm

Vent width up to 3500 mm

Max. vent weight up to 600 kg

Max. system width per 3500 mm leaf

Max. system height 3500 mm

System depth 75 mm

Max. glass thickness 40–60 mm

Thermal insulation Uw from ~0.82 W/(m²·K)

Sound insulation ~41–43 dB

Airtightness class 4

Watertightness E1050

Wind load resistance C5/B5

Burglar resistance up to RC3

cradle to cradle bronze

Design Award 2023

reddot winner 2023
