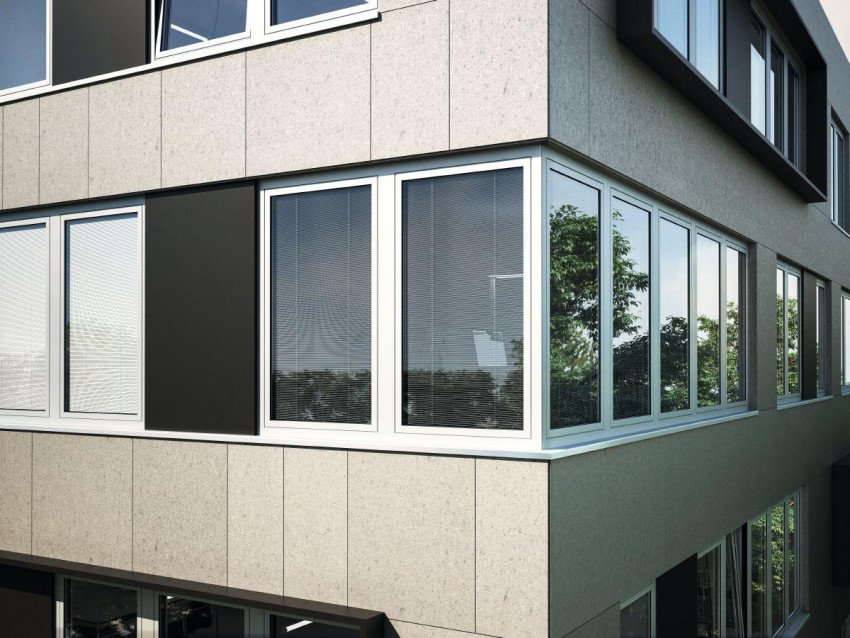

Schüco AWS 120 CC.SI Windows

Schüco AWS 120 CC.SI is an energy-efficient system meeting Passive House standards. Its integrated, concealed blinds offer precise light control and privacy while maintaining a sleek, minimalist facade.

Energy Efficiency

The Schüco AWS 120 CC.SI is engineered for exceptional thermal insulation, reducing energy loss while enhancing indoor comfort.

Integrated Sun Control

The system features Schüco CCB concealed blinds, providing superior light and heat management without external components that would disrupt the building's clean aesthetic.

Premium Soundproofing

Innovative seals and a multi-layer structure ensure maximum noise insulation, maintaining a quiet atmosphere in any environment.

Security and Durability

The system can be equipped with burglar resistance up to RC3, while the robust aluminum frame ensures long-term reliability and performance even in demanding environmental conditions.

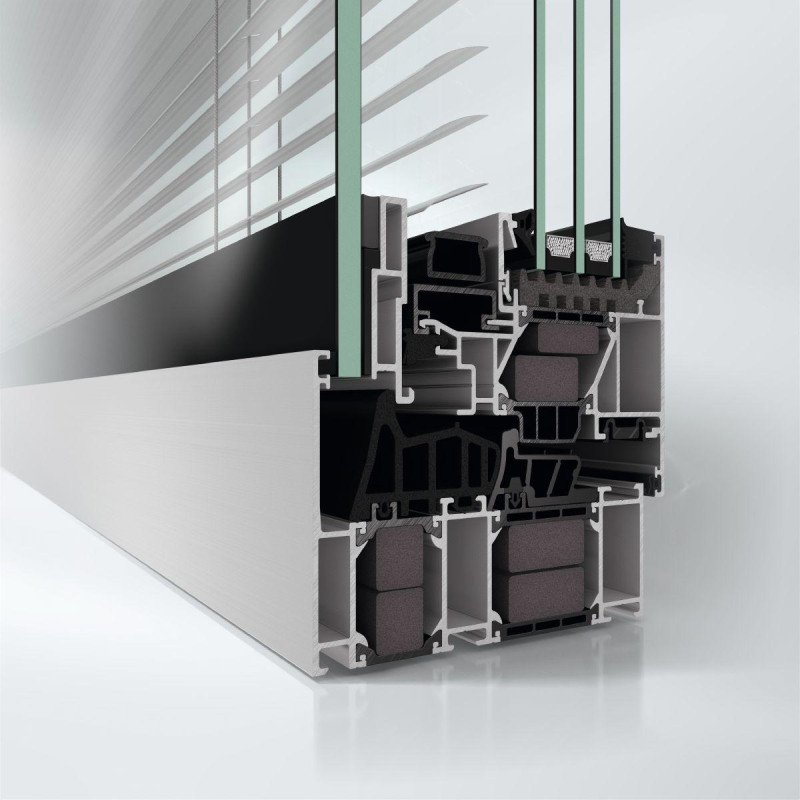

Technical Specifications

Frame depth ~120 mm

Visible width min. visible sash width ~88 mm (internal)

Thermal transmittance Uf down to ~0,84–0,85 W/(m²K) (passive standard)

Glass thickness Sash glazing up to ~50 mm; Fixed glazing up to ~90 mmm

Sound insulation Up to ~56 dB (High sound insulation)

Airtightness class 4

Watertightness class 9A

Wind load resistance C5/B5

Burglar resistance up to RC3

Opening types Tilt-and-turn, side-hung, concealed sash (SI), electric or automated opening mechanisms

Finishes Powder coating or anodizing

cradle to cradle silver

Brochures

Schüco AWS 120 CC.SI brochure
