Schüco AWS 75 PD.SI Panoramic Window System

Schüco AWS 75 PD.SI Panoramic Window System

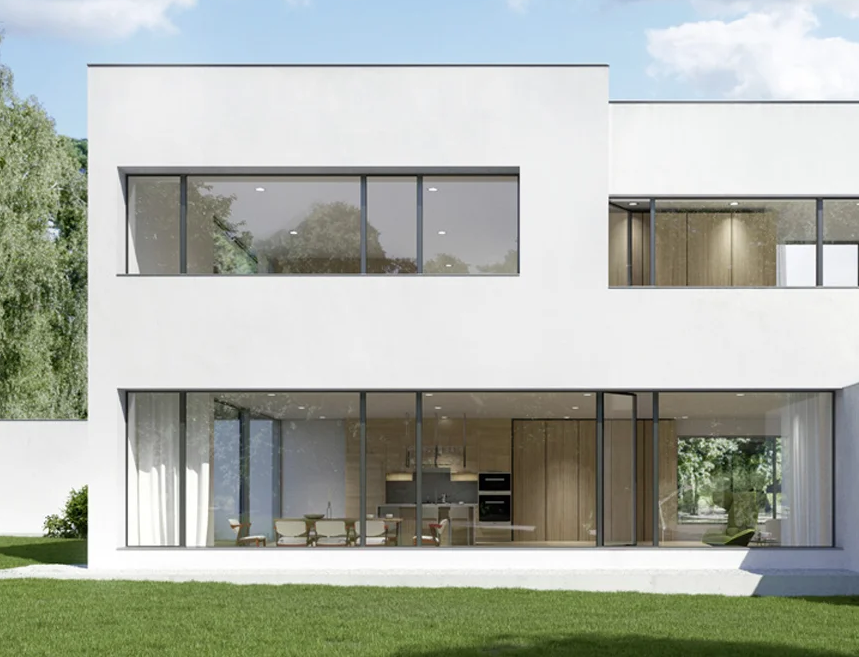

Experience maximum transparency with the Schüco AWS 75 PD.SI. This high-end aluminium system uses ultra-slim profiles to flood your space with light and deliver a clean, modern look.

More Glass and Natural Light

Schüco panoramic design allows for ultra-slim profiles, maximizing your glass surface for wider, clearer views. With identical visible widths for both opening and fixed windows, your building achieves a sleek, unified look across the entire facade.

Clean, Modern Interiors

From the inside, the windows feature a smooth, nearly flush surface with subtle shadow lines. All sealing and drainage components are concealed, maintaining a perfectly minimalist aesthetic.

High-Performance Insulation

Despite its slim profiles, the AWS 75 PD.SI delivers high levels of thermal insulation. The advanced profile construction minimizes heat loss, contributing to energy-efficient building solutions.

Versatile System

This system is suitable for any project, from residential to commercial. It offers the flexibility to be used as single windows, combined in continuous rows, or integrated into facade systems for a perfectly consistent appearance.

Durability and Reliability

This aluminium system ensures structural strength, longevity, and smooth operation. A wide range of colors and surface finishes is available, allowing the windows to be perfectly tailored to any architectural vision.

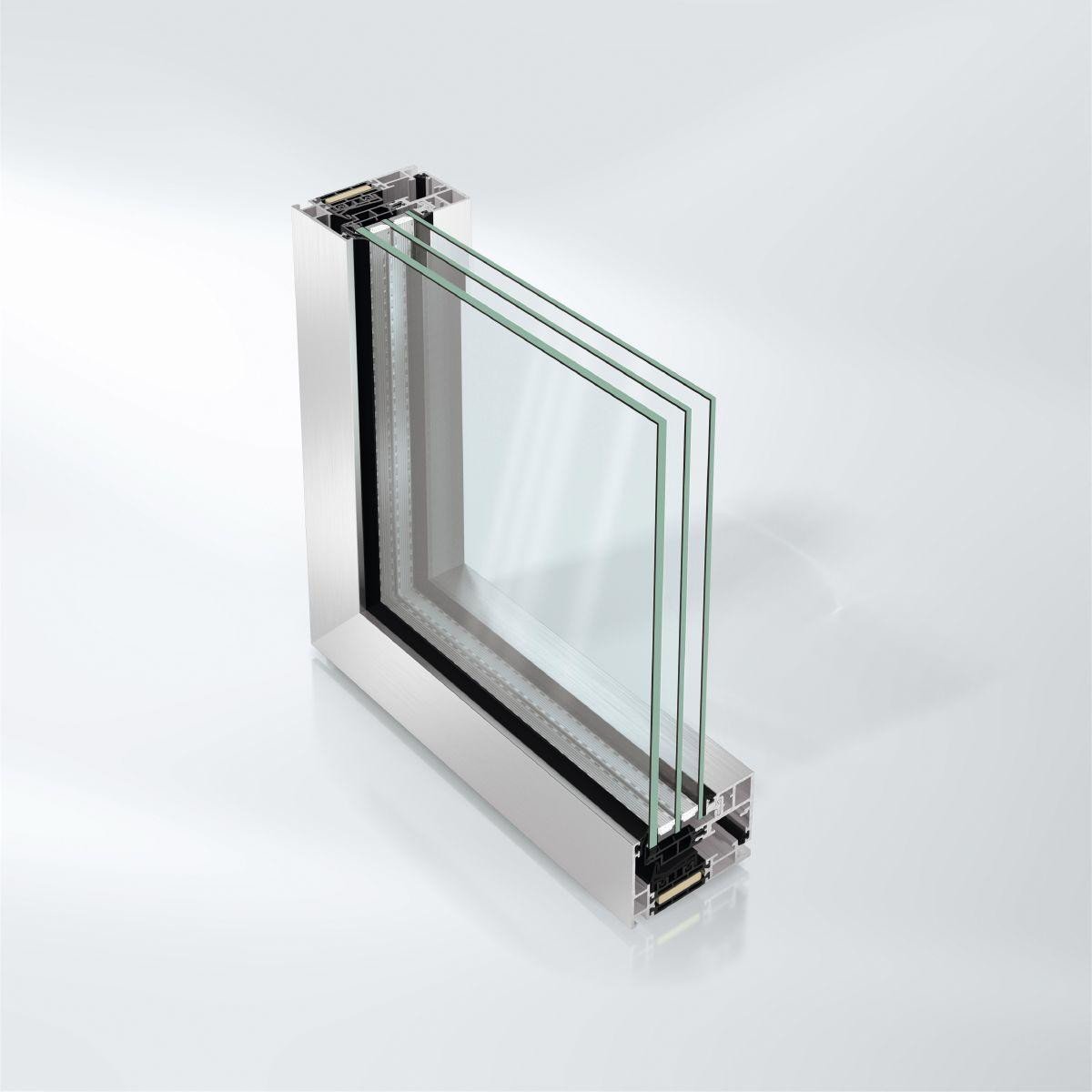

Technical Specifications

Frame depth 75 mm
Visible width from 91 mm
Thermal transmittance Uw down to 0.87 W/(m²K) (the Uw value depends on the selected glazing and construction.)
Glass thickness up to 50 mm
Sound insulation up to 48 dB
Airtightness class 4 (EN 12207)
Watertightness class 9A (EN 12208)
Wind load resistance C5 / B5 (EN 12210)
Burglar resistance up to RC2
Opening types Tilt & turn, side-hung, concealed sash (SI)
Finishes Powder coating or anodizing
Technical Specifications

Design Award 2019


reddot design award winner 2019
