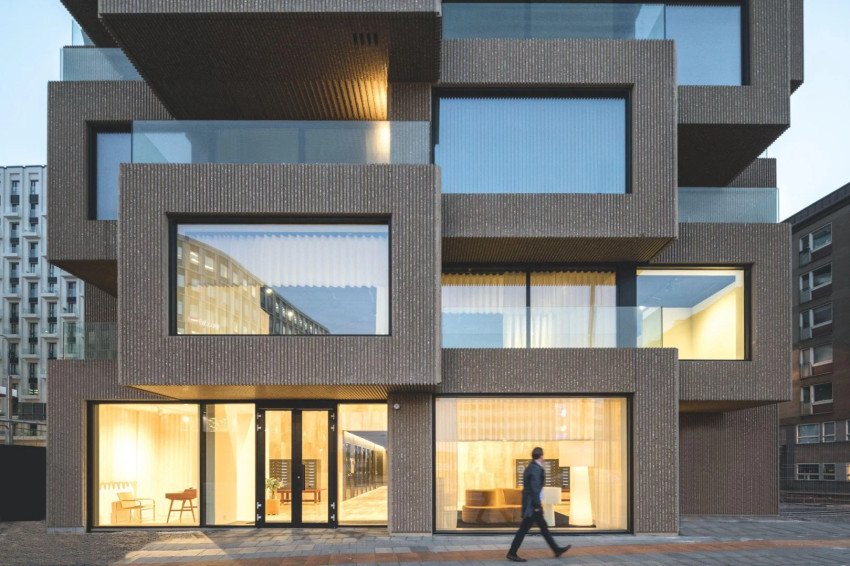

Schüco AWS 70 Windows

Schüco AWS 70 is an energy-efficient aluminum window system offering versatile design and high insulation. Perfect for new builds or renovations, it supports a wide range of opening types.

Optimal Thermal Insulation

Effective heat retention through robust profile design and additional insulation layers.

Broad Design Choice

Available in Residential Line, Soft Line, and Steel Contour styles to match any building's exterior.

Multiple Opening Styles

Windows can be designed for both inward and outward opening, including turn/tilt solutions.

Advanced Hardware Options

Manual or mechatronic TipTronic control for large-scale windows or automated operation.

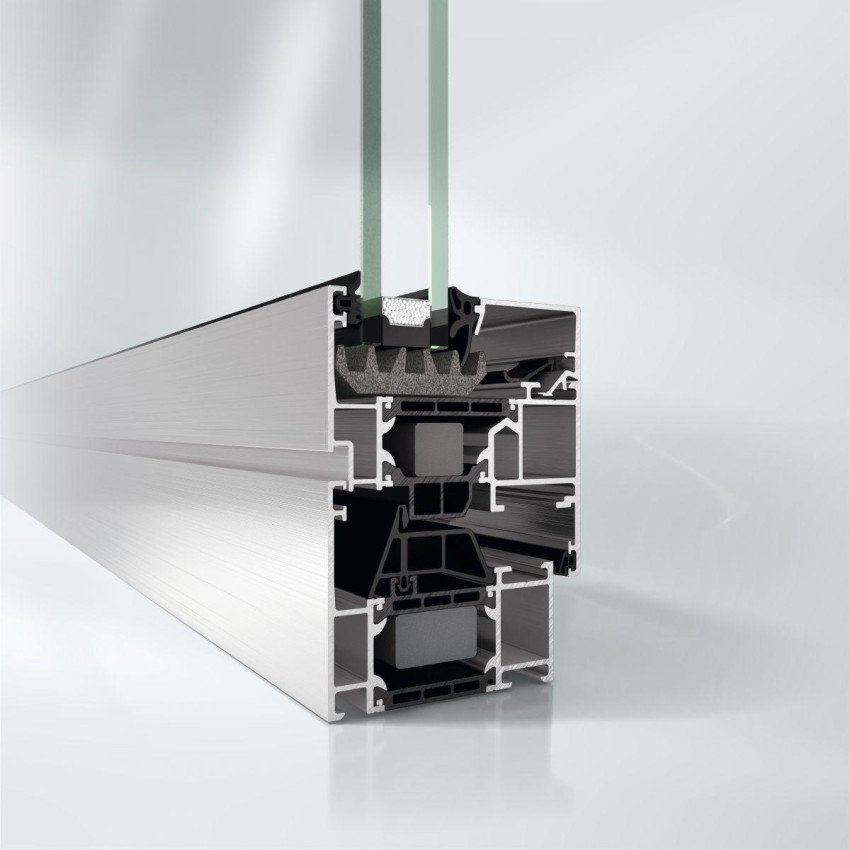

Technical Specifications

Frame depth ~70 mm

Visible width ~91 mm minimal visible frame

Thermal transmittance Uf ~1,5 W/(m²K) (frame Uf) – total Uw depends on glazing selection

Glass thickness ~21–62 mm (Glazing thickness available depending on configuration)

Sound insulation up to ~48 dB (Rₙw) – depending on glazing and construction

Airtightness class 4 (EN 12207)

Watertightness class 9A (EN 12208)

Wind load resistance C5/B5 (EN 12210)

Burglar resistance up to RC3

Opening types Turn/Tilt, Bottom-Hung/Toplight, Outward-opening, Barrier-free, and TipTronic mechatronic integration.

Finishes Powder coating or anodizing

cradle to cradle silver
