Schüco AWS 75 Windows

Schüco AWS 75 Windows

Schüco AWS 75 – timeless elegance. Modern design. Exceptional thermal insulation. German quality.

High Thermal Insulation

The system’s thermal transmittance (Uw) can reach as low as 0.87 W/(m²K)*, leading to lower heating costs and increased living comfort throughout the year.


Clean, Minimalist Design

Slim profiles and integrated concealed sashes create a modern, light-filled aesthetic, suitable for both contemporary architecture and the modernization of classic homes.

Security and Performance

The system meets high standards for security (up to RC 2) and airtightness. It ensures reliable thermal and sound insulation as well as burglary protection.

Design Flexibility

Various opening configurations (side-hung, tilt, or concealed sash) and a wide selection of colors and finishes allow the windows to match the specific character of your project.

Sustainability

• Schüco AWS 75 systems are made from 100% recyclable aluminium. They are durable and environmentally friendly
• The systems comply with EU energy efficiency and sustainability standards.
• Profiles are available with Cradle to Cradle Bronze or Silver certification.
• By choosing Schüco products, you contribute to a lower CO₂ footprint in the construction process.

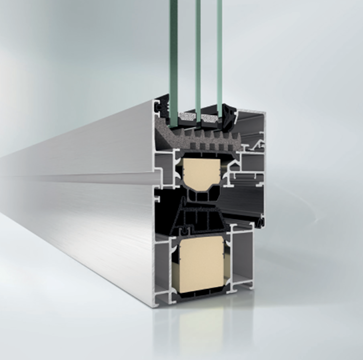

Technical Specifications

Frame depth 75 mm
Visible width from 91 mm
Thermal transmittance Uw down to 0.87 W/(m²K) (the Uw value depends on the selected glazing and construction.)
Glass thickness up to 50 mm
Sound insulation up to 48 dB
Airtightness class 4 (EN 12207)
Watertightness class 9A (EN 12208)
Wind load resistance C5/B5 (EN 12210)
Burglar resistance up to RC2
Opening types Tilt & turn, side-hung, concealed sash (SI)
Finishes Powder coating or anodizing
Technical Specifications
