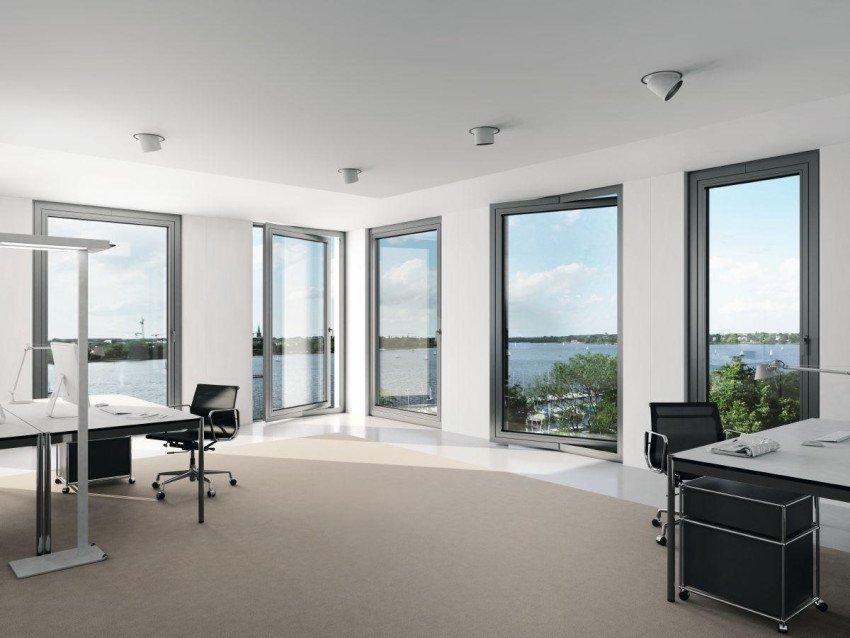

Schüco AWS 90.SI+ Windows

Schüco AWS 90.SI+ is a high-end aluminum window system designed for energy-efficient and passive buildings. It offers extensive architectural flexibility alongside superior comfort and security standards.

High Thermal Insulation

Optimized design compliant with passive house standards.

Wide Range of Design Options

Systems can be designed as standalone units, horizontal window rows, or inset components.

Various Opening Options

Available in side-opening, turn/tilt, tilt-and-slide, and double-sash configurations.

Advanced Integrated Solutions

Designed for seamless compatibility with sun control, ventilation, and door systems.

Passive House Certified

Achievable with specific profile combinations.

Technical Specifications

Frame depth 90 mm

Visible width ~99 mm minimal visible frame

Thermal transmittance Uf ~0.71 W/(m²K) (high insulation)

Glass thickness up to ~68 mm (depending on configuration)

Sound insulation ~47 dB Rw

Airtightness class 4 (EN 12207)

Watertightness class 9A (EN 12208)

Wind load resistance class C5/B5 (EN 12210)

Burglar resistance up to RC3

Opening types Side-hung, turn-tilt, tilt-and-slide, double-vent, and barrier-free solutions

Finishes Powder coating or anodizing

cradle to cradle silver
