Reynaers MasterPatio Sliding System

Reynaers MasterPatio Sliding System

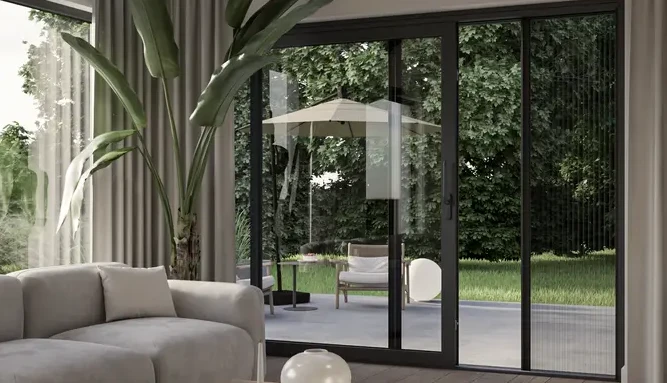

Reynaers MasterPatio is a versatile, high-performance aluminum sliding door system designed for ultimate comfort and reliable operation in both residential and commercial projects.

Durable and Effortless Operation

Precision-engineered tracks and mechanisms ensure smooth, reliable movement for large-scale vents weighing up to 600 kg.

High Thermal Insulation

The available "High Insulation" variant delivers exceptional thermal performance (Uw ~0,8 W/m²K), making it ideal for energy-efficient building designs.

Design Flexibility

With options ranging from Slim to Lift-and-Slide, the system effortlessly adapts to any architectural requirement.

Custom Upgrades

Tailor the system to your needs with automated drive systems, smart access control, and integrated insect screens. Maximize visual minimalism and accessibility with low-threshold designs and concealed drainage.

Technical Specifications

Vent height up to ~3600 mm
Vent width up to ~3000 mm
Max. vent weight up to ~600 kg
Max. system width ~3000 mm standard (configuration dependent)
Max. system height up to ~3600 mm
System depth ~180 mm (standard frame depth)
Max. glass thickness up to ~62 mm
Thermal insulation Uw ~0,8 W/m²K (High Insulation version)
Sound insulation ~44(-1;-4) dB
Airtightness class 4
Watertightness class E1200
Wind load resistance class C5
Burglar resistance RC2

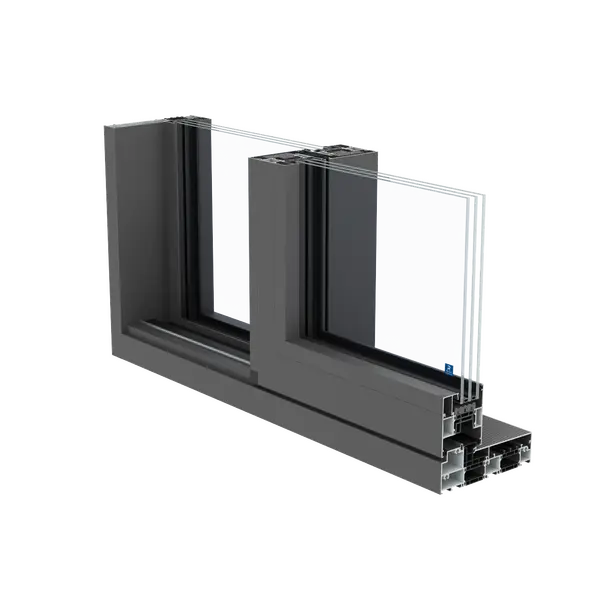

Technical Specifications

Red Dot Award

 Cradle to Cradle Bronze

Minergie
