Schüco FWS 60 Facade System

Schüco FWS 60 Facade System

Schüco FWS 60 is a high-end aluminum facade system offering wide design freedom and smooth integration with Schüco doors, windows, and sliding systems.

Elegance and Aesthetics

The slim 60 mm profile width creates a modern, minimalist facade that integrates with diverse architectural shapes.

Design Flexibility

A broad selection of structural profiles, cover caps, and insert elements offers architects and designers maximum flexibility.

Mechatronic Integration

Simple and reliable connection with electrical components, including automated openings and solar shading systems.

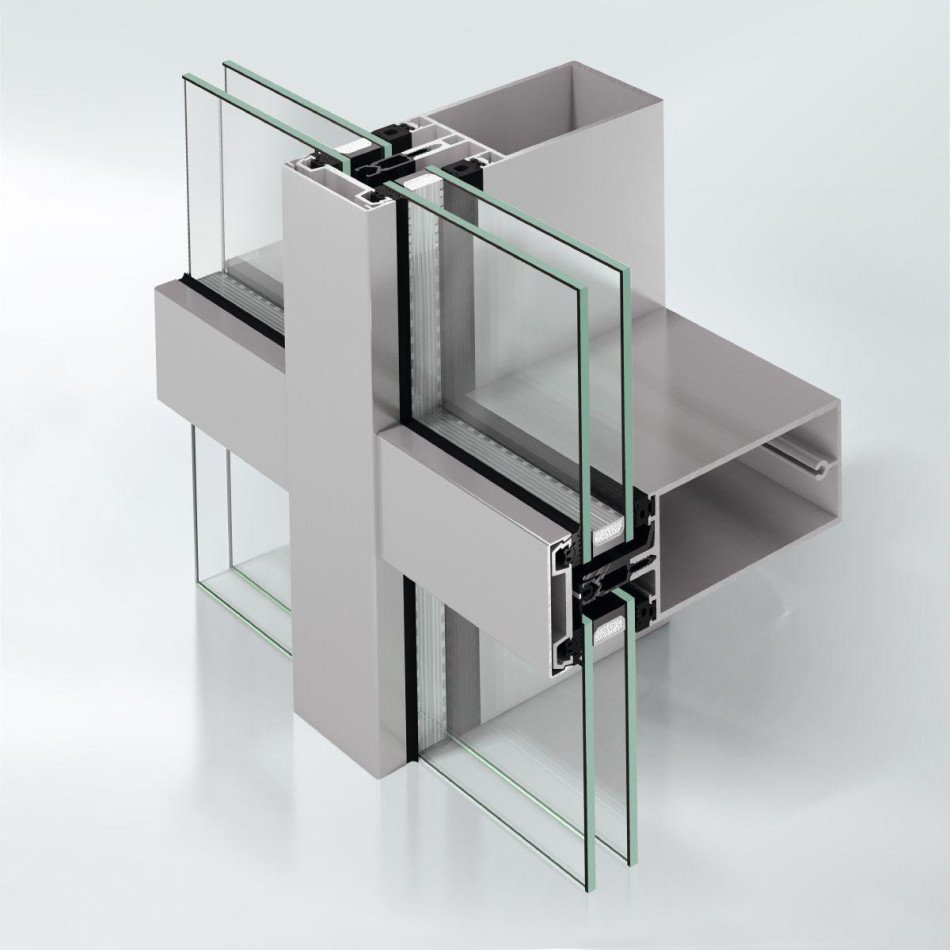

Technical Specifications

Visible profile width 60 mm
Construction depth 6–255 mm (system profile depth)
Max. glass / panel thickness 62 mm
Max. openable sash weight up to ~1080 kg (system unit load)
Max. fixed element weight up to ~1080 kg (system unit load)
Thermal insulation Uf from ~1,3 W/(m²·K) (standard version; options with enhanced insulation available)
Airtightness AE
Watertightness RE 1200
Sound insulation ~46 dB(A) (depending on system configuration)
Impact resistance I5/E5
