Schüco Seamless Facade System

Schüco Seamless Facade System

Designed for maximum transparency and natural light, the Schüco Seamless aluminum facade system combines minimalist framing with an exceptionally clean, high-end architectural aesthetic.

Elegance and Aesthetics

The Seamless system creates a virtually flush facade with no visible transitions between the sliding elements and the primary structure. This achieves maximum glass areas and an ultra-minimalist design.

Large-Scale Sliding Configurations

The Seamless solution enables the specification of large-format sliding units with expansive opening widths, giving architects the creative freedom to design open, light-filled interiors.

Seamless Indoor-Outdoor Connection

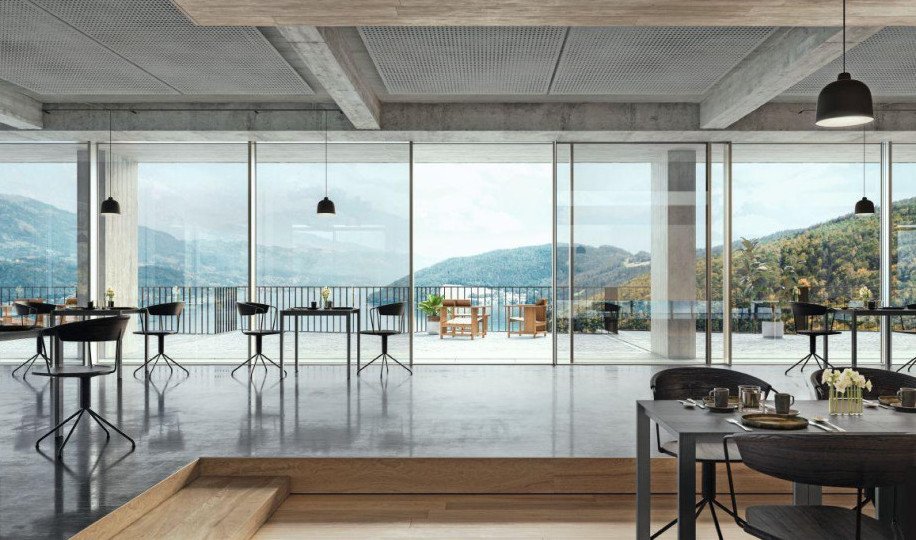

The Seamless solution dissolves the visual boundaries between interior and exterior spaces, significantly enhancing the sense of space.

Premium-Class Solution for Exclusive Projects

Perfect for luxury residential, high-end hospitality, and prestigious corporate or civic venues.

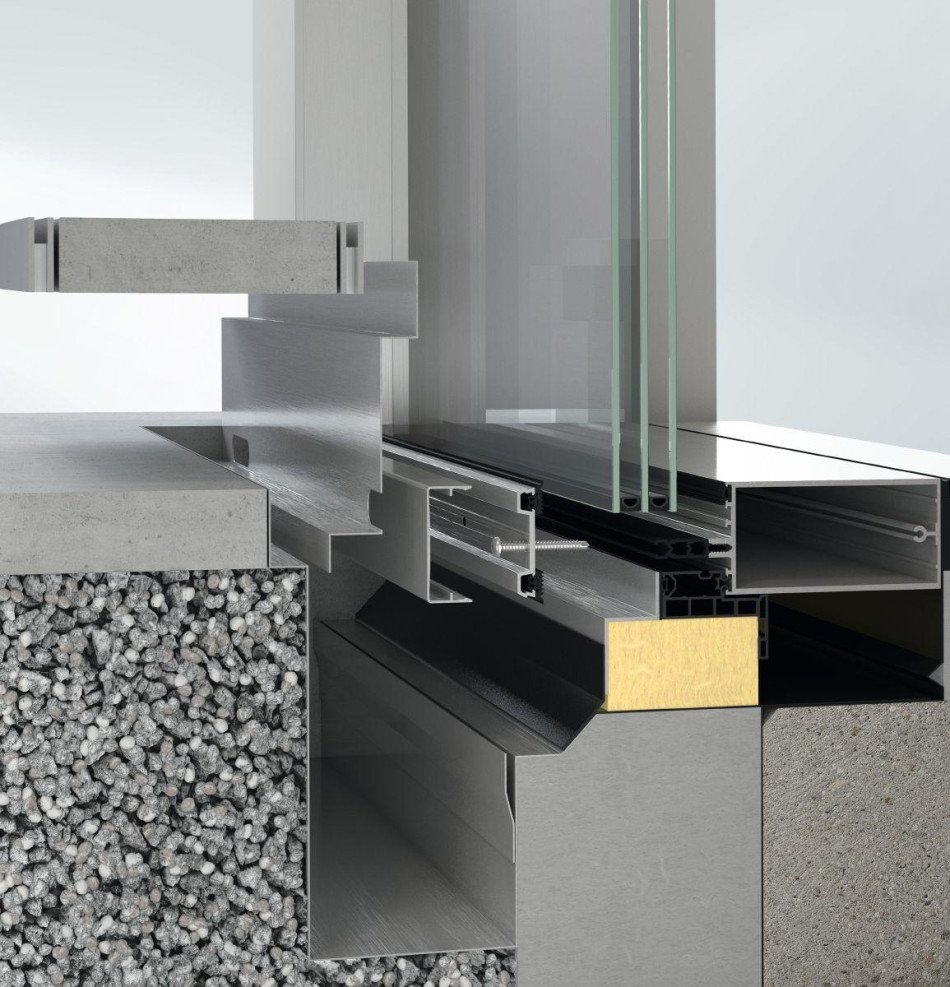

Technical Specifications

Visible profile width ~35 mm – ultra-slim Panorama Design visible profile width
Construction depth ~65–150 mm (standard FWS 35 PD depth)
Max. glass / panel thickness ~50 mm
Max. openable sash weight ~400 kg
Max. fixed element weight ~400 kg
Thermal insulation Uf from ~1,4 W/(m²·K)
Airtightness AE
Watertightness RE 1200
Sound insulation up to ~51 dB(A)
Impact resistance I5/E5
*Technical specifications are based on the FWS 35 PD Panorama Design system, the core engineering platform for the Schüco Seamless solution.
