Folding Sliding Schüco AS FD 90.HI System

Folding Sliding Schüco AS FD 90.HI System

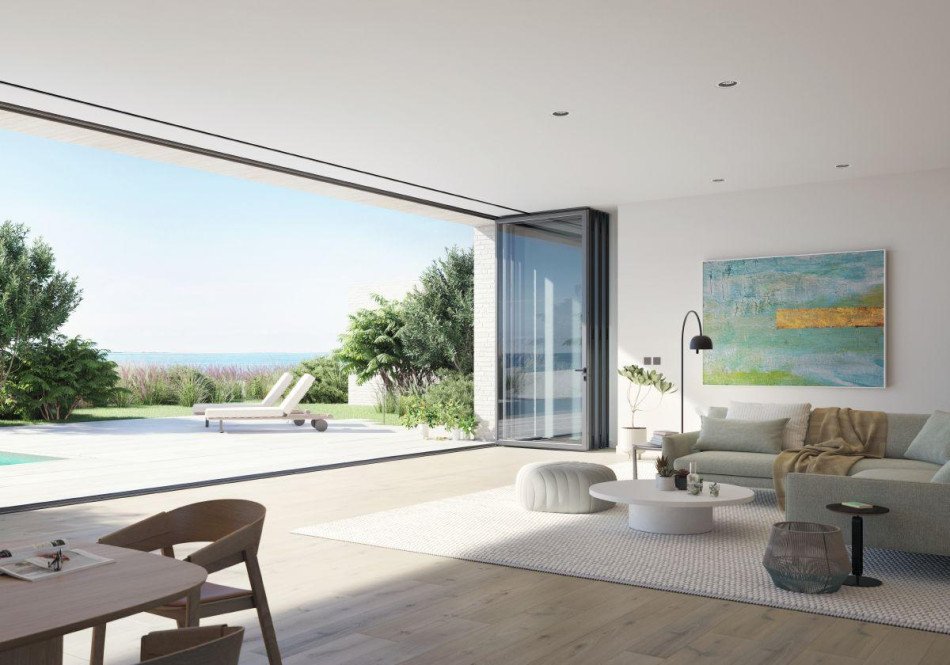

Schüco AS FD 90.HI is a premium folding sliding system that opens up spaces almost completely, seamlessly blending indoors and outdoors with high standards of comfort, sealing, and security.

Indoor-Outdoor Connection

Folding panels open up to nearly 100% of the width, creating a seamless and natural transition between indoors and outdoors.

High Thermal Insulation (HI)

An optimized profile design delivers excellent thermal performance, making the system ideal for energy-efficient buildings.

Everyday Comfort

High-quality Schüco hardware ensures smooth, quiet, and reliable operation even under heavy loads.

Perfect For Any Space

Designed for homes, villas, hotels, restaurants, and commercial buildings where openness, light, and comfort are essential.

Technical Specifications

Vent height 660–3500 mm
Vent width 600–1500 mm
Max. vent weight 150 kg
Max. system width 10 500 mm
Max. system height 3608 mm
System depth 90 mm
Max. glass thickness 65 mm
Thermal insulation Uw ≥ 0,8 W/(m²·K)
Sound insulation up to 48 dB(A) (Rwp)
Airtightness class 4
Watertightness E 750
Wind load resistance C3 class
Burglar resistance up to RC2
Technical Specifications

cradle to cradle bronze



Design Award 2023



reddot winner 2023
